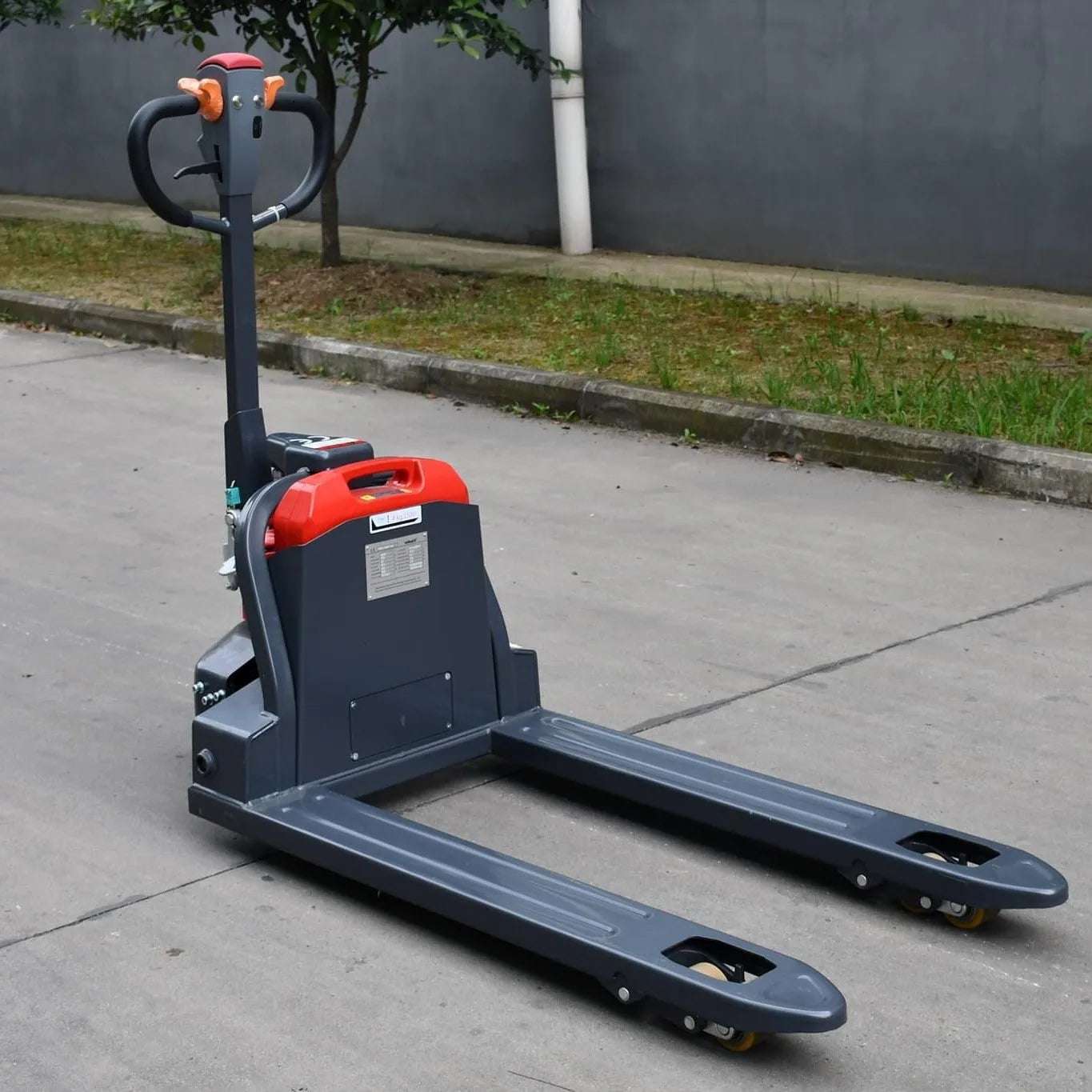

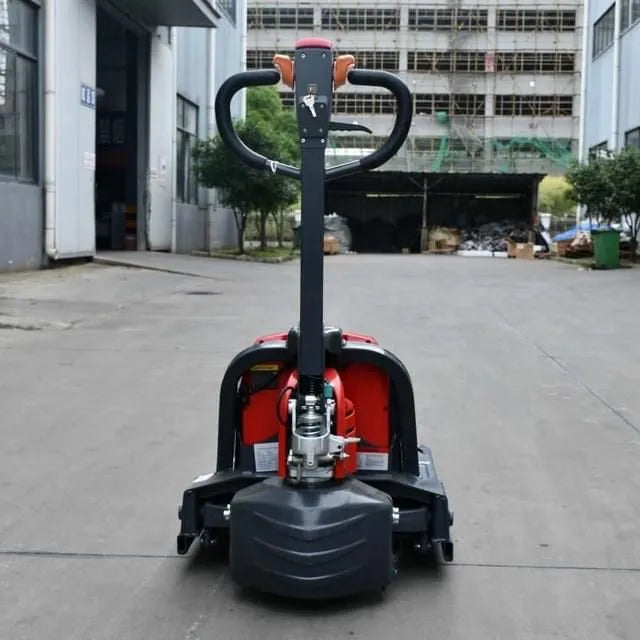

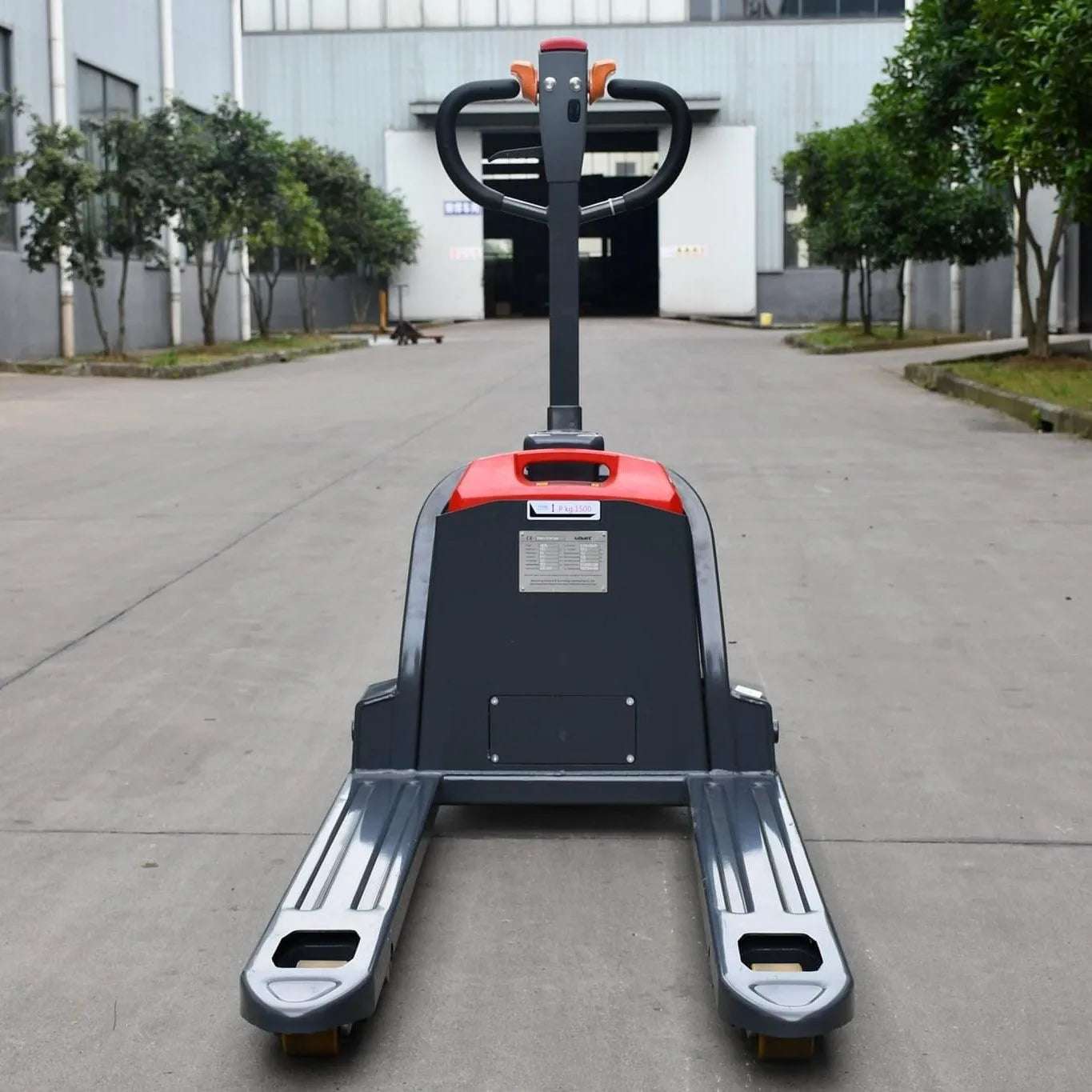

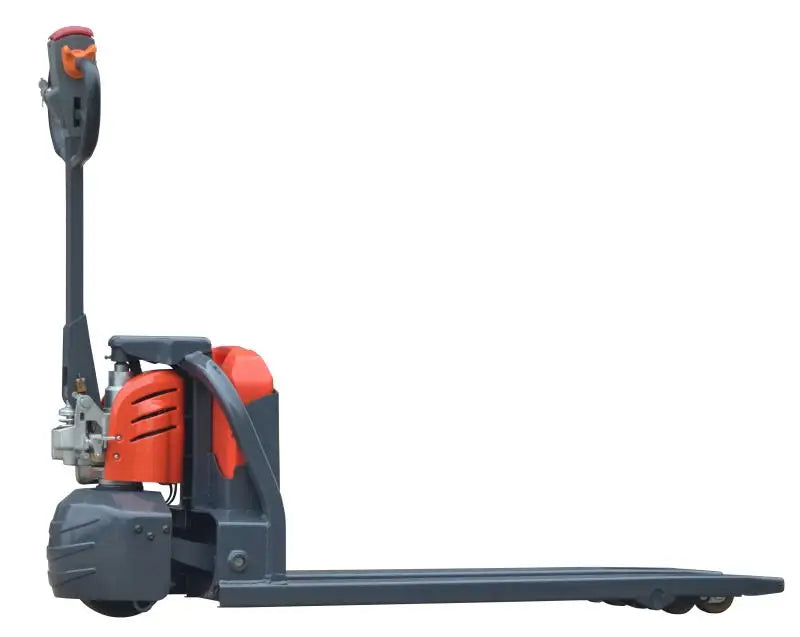

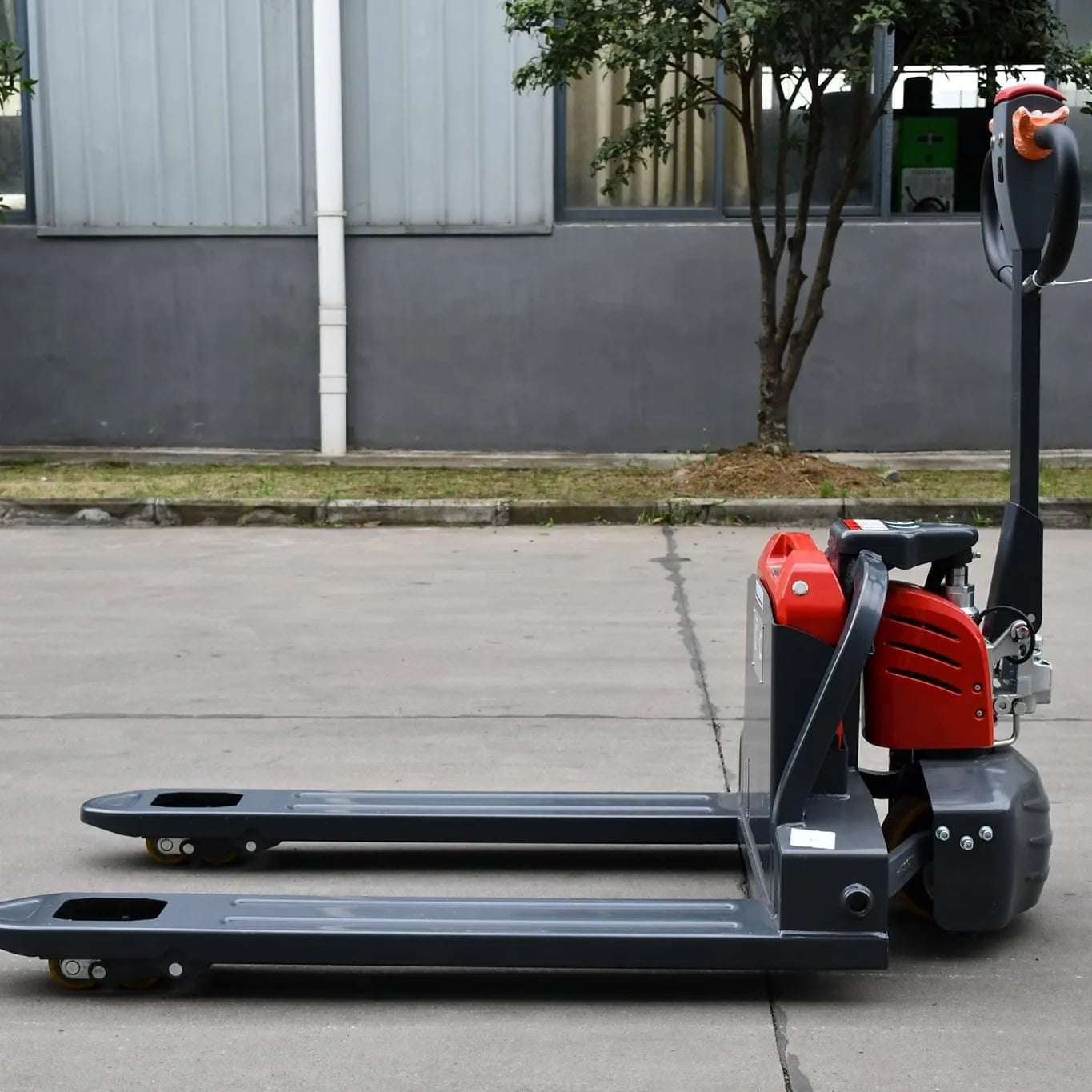

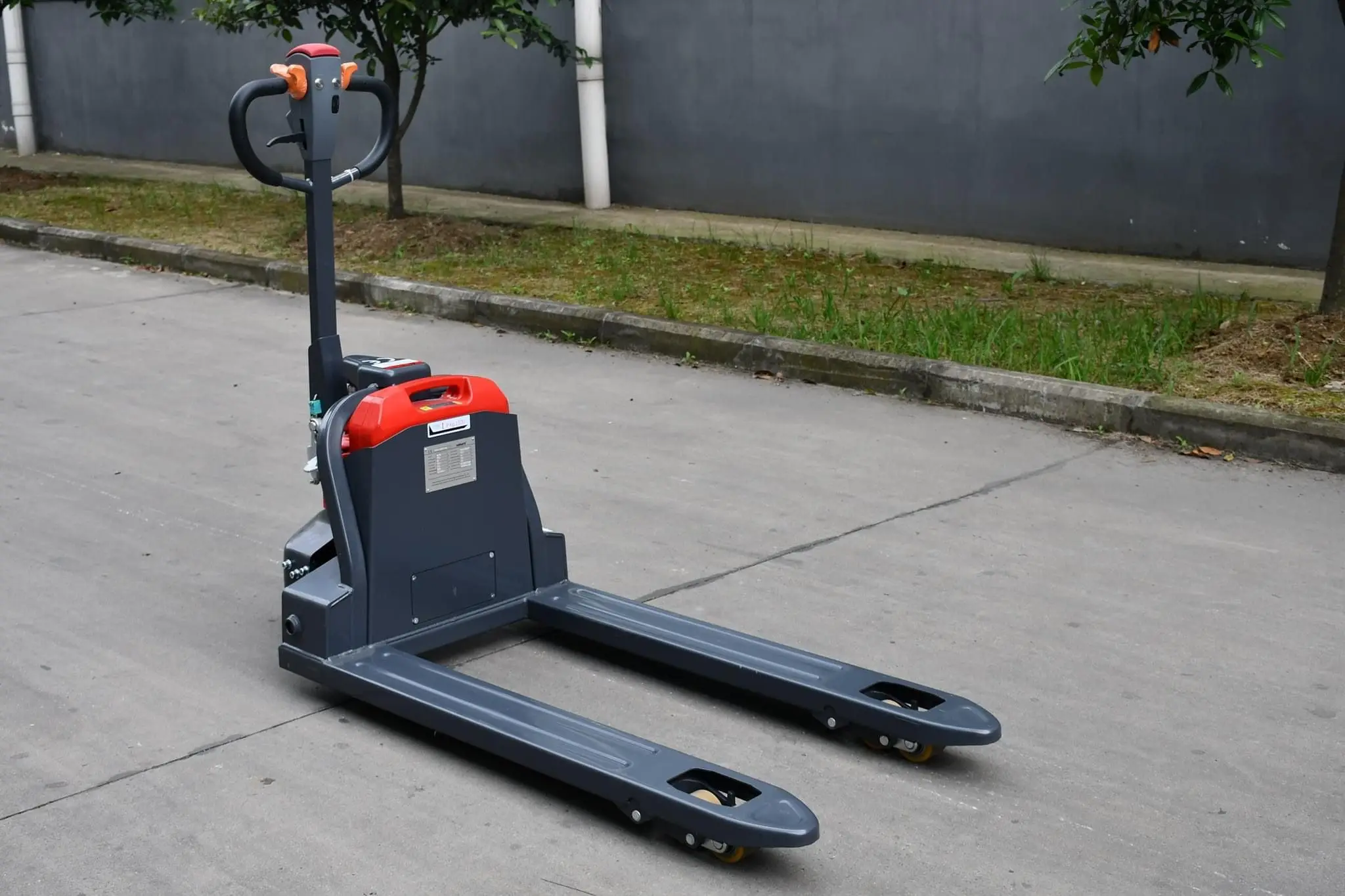

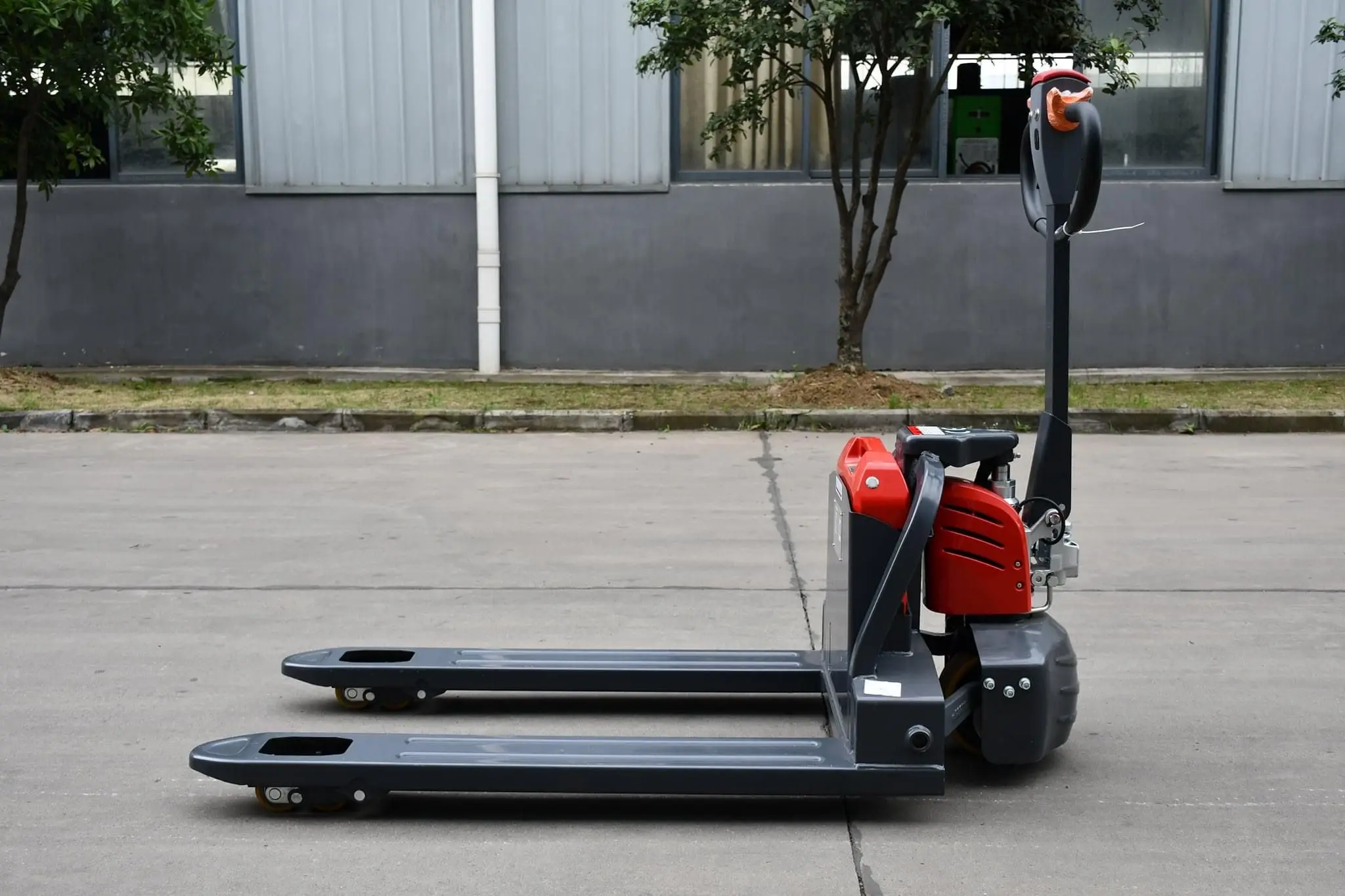

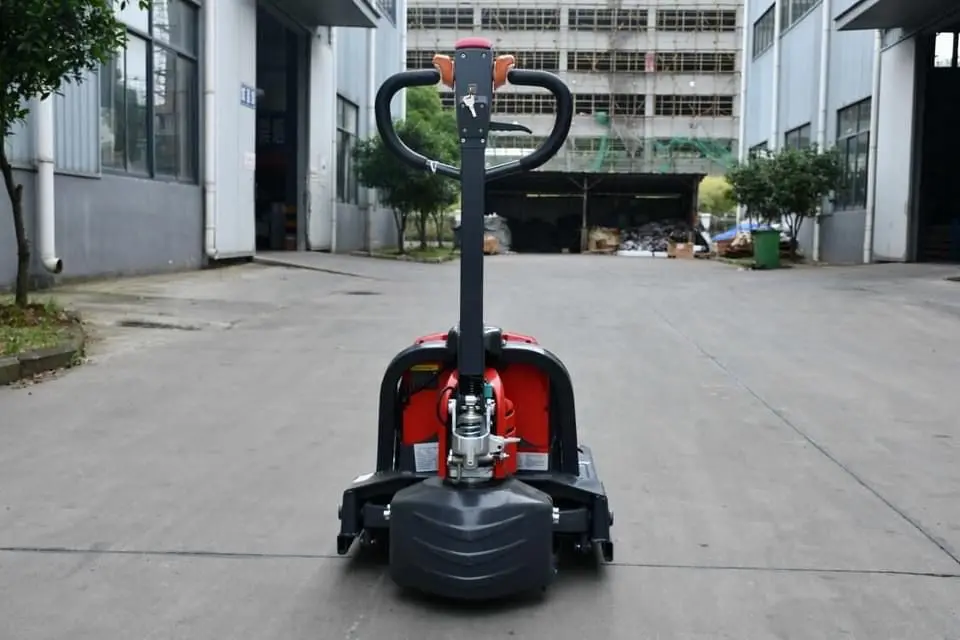

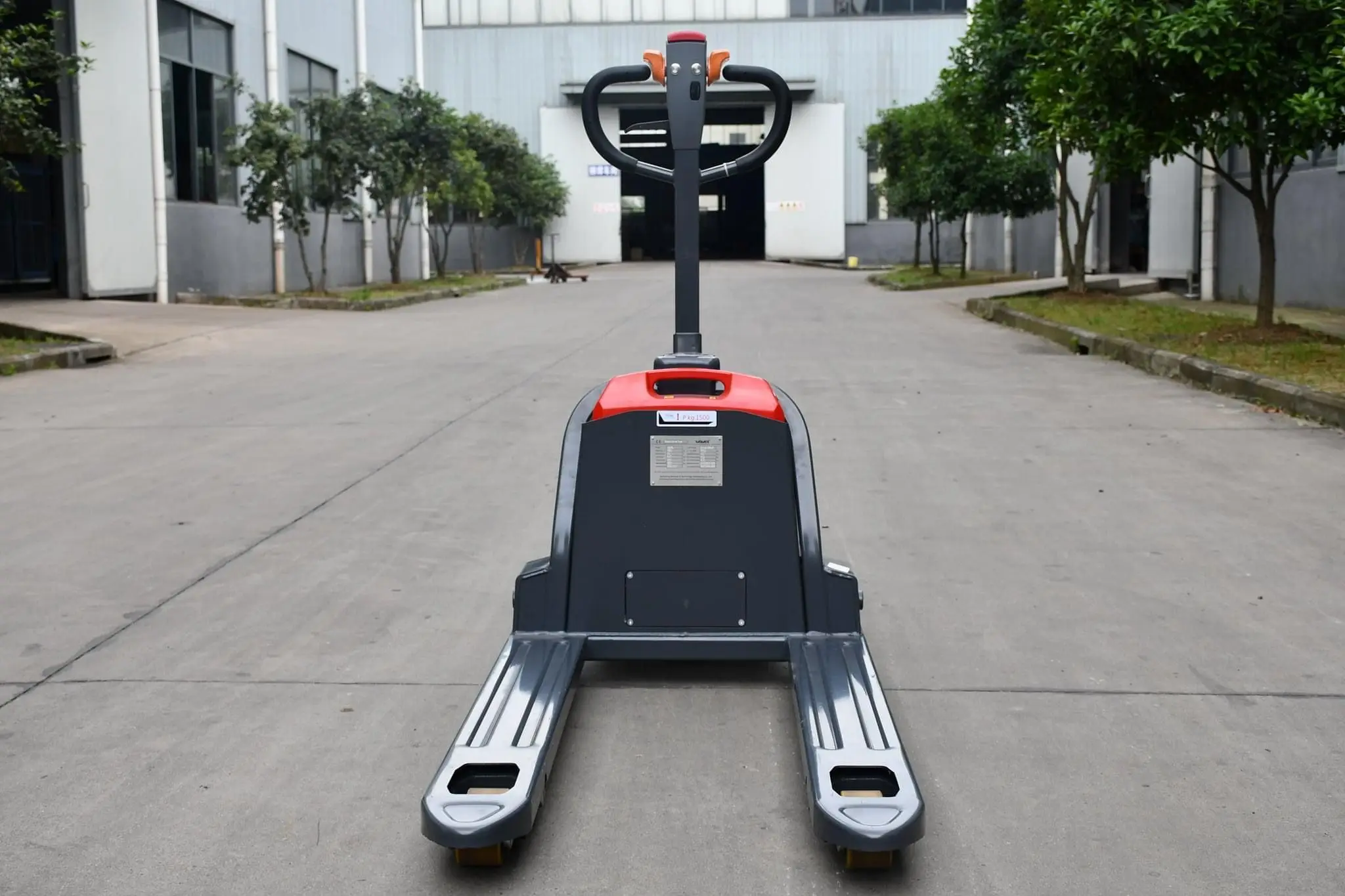

1.5TON 1500kg Electric Pallet Jack Full electric pallet truck Lithium battery forklift

1.2

Mode

ELEP-15A

1.3

Drive type

Electric

1.4

Manner of operation

Walkie

1.5

Load Capacity

Q (t)

1.5

1.6

Load Centre

c (mm)

600

1.8

Distance between fork backrest and front wheel

x (mm)

944

1.9

Wheel Base

y (mm)

1243

2.1

Service Weight(with battery)

kg

142

3.1

Tire material

PU

3.7

Tread

b11 (mm)

400/535

4.4

Lifting Height

h3 (mm)

200

4.9

The height of handle in the operation position

h14 (mm)

740/1160

4.15

Lowered fork height

h13 (mm)

85

4.19

Overall Length

l1 (mm)

1603

4.20

Body Length

l2 (mm)

453

4.21

Overall Width

b1/ b2 (mm)

550/685

4.22

Fork Size

s/e/l (mm)

50/150/1150

4.25

Fork Width

b5 (mm)

550/685

4.32

Ground clearance under mast

m2 (mm)

35

4.33

Aisle width for pallets 1000*1200 crossways

Ast (mm)

1804

4.34

Aisle width for pallets 1000*1200 lengthways

Ast (mm)

1854

4.35

Turing Radius

Wa (mm)

1398

5.1

Driving Speed,load/unload

(km/h)

4.2/4.5

5.8

Maximum gradeability load/unload

(%)

5/10

5.10

Brake Type

Electromagnetic brake

6.1

Drive Motor

(kW)

0.75

6.2

Lift Motor

(kW)

0.8

6.3

Battery,according to DIN 43531/35/36 A,B,C,no

no

6.4

Battery voltage/rate capacity

(V/Ah)

24/20

24/40

24/60

6.5

Battery Weight(±5%)

(kg)

6

10.2

13.2

8.1

Type of drive control

DC

10.5

Steering type

Manual steering system
