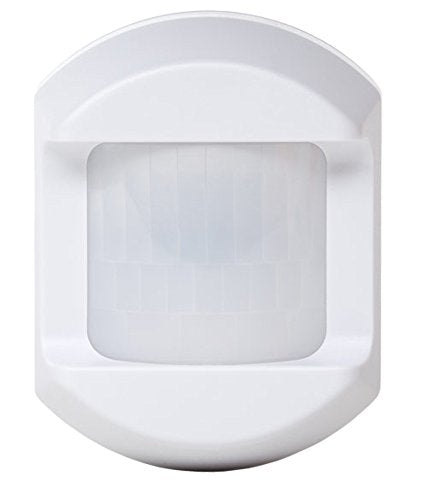

2gig PIR1-345 Passive Infrared Motion Detector with Wide-Angle Motion Protection

The 2GIG Passive Infrared Motion Detector is a wall-mounted unit with wide-angle motion protection. It communicates with the control panel using the 345 MHz frequency. When set to High (HI) Sensitivity Mode, the PIR has a maximum range of 30 ft deep x 50 ft wide (9.1 m x 15.2 m). The PIR’s pet-immune feature can be set to tolerate animals up 55 lbs.

Specifications:
Wireless Signal Range: 350 ft, open air, with 2GIG Wireless Alarm Control Panel
Code Outputs: Alarm; Alarm Restore; Tamper; Tamper Restore; Supervisory; Low Battery
Transmitter Frequency: 345.000 MHz (crystal controlled)
Transmitter Frequency Tolerance: ± 15 kHz
Transmitter Bandwidth: 24kHz
Modulation Type: Amplitude Shift Keying—On/Off Keying (ASK-OOK)
Unique ID Codes: Over one (1) million different code combinations
Supervisory Interval: 70 minutes
Peak Field Strength: Typical 50,000 uV/m at 3m
Sensor Type: Quad element
Pet Immunity: Selectable: 15 kg (33 Ibs.) or 25 kg (55 Ibs.; default)
Sensitivity Jumper: Selectable: High or Low (default)
Suggested Mounting Height: 7.5 ft. (2.3 m)
Sensor Range: 30ft. (9.1m) x 50 ft. (15.2m)
Maximum Horizontal Sensing Angle: 90
Dimensions (LxWxH): 3.2 x 2.5 x 1.9 in. (8.12 x 6.35 x 4.82 cm)
Weight (including battery 81 bracket): 3.7 oz. (104.9 g)
Housing Material: ABS plastic and poly-carbonate
Color: White
Operating Temperature: 32° to 120°F (0° to 49°C)
Relative Humidity: 5-95% Non-Condensing
