2gig TS1-C Wireless Wall-Mounted Touch Screen Keypad for GC2 Panels - White,Canadian French

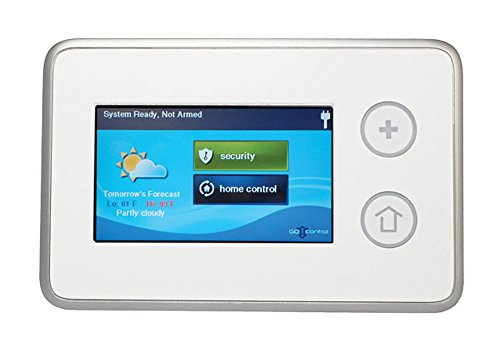

The Wireless Touch Screen Keypad (2GIG-TS1) is a wall-mounted, full-color, touch screen interface that provides many of the same easy-to-use keypad functions available on the control panel. It is designed for indoor use only and gives users the ability to control lights, thermostats, and door locks, as well as to view the status of every sensor zone.

When the 900 MHz Transceiver Module (2GIG-XCVR2-345) is installed in the GC2 control panel, the system can be programmed to communicate with up to four (4) Wireless Touch Screen Keypads.

Specifications:
• Display: 4.3? QVGA full color
• Dimensions: 6.7? x 4.3? x 0.8?
• Wireless: 900 Mhz frequency hopping bi-directional communication
• Range: 500 feet line of site
• Power: 14 VAC using including AC adapter
• Speaker: Playback of locally store annunciation messages, chimes and alarms

Regulatory Approvals
FCC part 15
