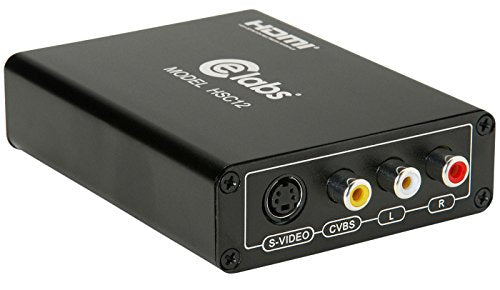

Cable Electronics HSC12 HDMI to Composite Video Scaler

The CE Labs HSC12 converts SD or HD HDMI signals to SD baseband video and audio so that they may be displayed on standard monitors. The HSC12 scaler also converts HD signals to SD to facilitate recording on legacy equipment. An S-video output is available for improved picture quality.
The HSC12 does not support simultaneous output of composite video and S-video, but either one is selectable by a switch on the unit. Includes one HDMI input, one RCA jack output connector (yellow) for video, two RCA output connectors for left audio (white) and right audio (red), and one S-video output jack.

Specifications:
• Video output impedance: 75 ohms + 5%
• Composite video output: 1.0V p-p
• S-video output: Y: 1.0V p-p, C: 0.3V p-p
• Vertical resolution format (visible lines per frame): Approximately 480 (525 total lines)
• Horizontal resolution (visible pixels per line): Determined by bandwidth, ranges from 320 to 650
• Audio output impedance: 1K ohm
• Horizontal rate: 15.734 kHz
• Vertical frame rate: 29.97 Hz
• Highest frequency output: 4.2 MHz
• Scanning systems: 59.94 Hz
• Power: 5VDC, 1A with 2.1 mm power jack
• Power supply included
• Dimensions: (L x W x H): 4.7" x 3.3" x 1.1"
