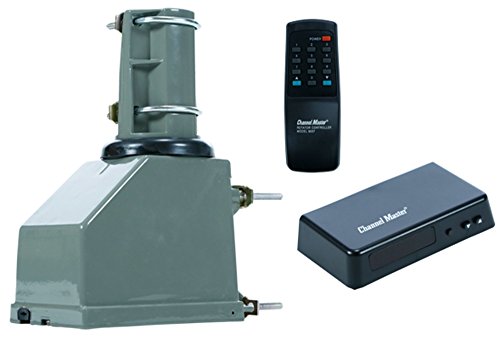

Channel Master CM-9521 Wireless TV Antenna Rotator System with Infra-Red Remote Control

The Rotator System is used to provide easy TV antenna positioning from a remote location through the use of an electronic control box and control unit, up to masts of 2” in diameter.

Other Features:
Drive Unit
Built-in steel thrust bearings
Easy push tab wire connections
Control Unit
Non-Volatile memory – Holds locations during power failures
Automatic synchronization ensures pinpoint position accuracy
Directional access control via TV channel number or digital compass location
Unobtrusive control unit blends with any décor
Infra-red remote control
Compatible with most universal remote controls

Technical Specifications
Rotation: 1 RPM
Gear Ratio: 3,200 to 1
Accepts TV antenna mast: up to 1.75” in diameter (upper mast)
Power: 117 V, 60 Hz, control unit provides power for the rotator
Operating Temperature: -20 Degrees Celsius to + 55 Degrees Celsius
Rotate Torque: up to 100 lbs
Driving Torque: up to 1,000 lbs
Overall Height: 10.25 in
Lower motor drive housing: 5.5 x 4.5 x 7 in
Upper mast mount holes: 2.125 in (center to center)
Lower mast mount holes: 2.25 in (center to center)
Size (product): 8.5 x 3.75 x 10.25 in
Weight (product): 6 lb

What’s Included
Drive unit
Control unit (rotator wire not included)
Power adapter
Remote Control
