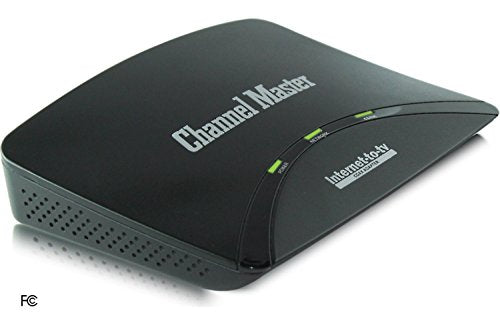

Channel Master CM6001 1 Port Internet To TV Coaxial Network Adapter

The Channel Master CM6001 Internet-to-TV Coax adapter is an easy to install solution providing an internet connection to any of the coax cable outlets in the home. Many new TV’s, set-top boxes, Blu-ray players and game consoles now have internet capabilities and need to be connected to the internet. After getting these products home you may find it difficult to connect them to the internet because you may not have an Ethernet jack by the television or device. With most homes prewired with coax to nearly all rooms, Channel Master’s Internet to TV Coax adapter is the perfect solution. Simply connect one adapter to your modem and coax network, then connect the second Adapter to your coax network in another room where internet connection is desired. The Internet-to-TV adapters have been designed to allow the home network or internet signal to ride along the same coax as your cable television or terrestrial antenna signals with no interference. This is the most reliable solution without installing new wires, and best of all, it’s affordable and easy to install.

Specifications:
• Frequency Range
?- MoCA: 1125MHz ~ 1525MHz (D Band)
?- TV Port: 5MHz to 1004MHz
• MoCA Rev: MoCA 1.1 compliance
• Channel
- Channel Bandwidth: 50MHz
?- Channel Number: D1~D8
• Packet Error Rate: 1E?6
• Power Requirement
- Input Voltage: 100?240VAC, 50/60Hz
    ?- Output Voltage / Current: 12VDC, 1A
  • Ethernet Interface:
- Connector: 10 Base?T/ 100 Base?TX RJ?45
• RF Interface
?- CP (Common Port) F?type Female connector, 75ohm
?- CATV (TV Out Port) F?type Female connector, 75ohm
• Impedance 75 ?
• Maximum devices supported in MoCA environment: 16 devices
• Dimensions (With interfaces & sockets): 109.8 x 95.6 x 27 mm
• Regulatory Compliance: FCC, ESD
• Operating temperature: 0 ? C ~ 40 ? C
• Storage temperature: ?20 ? C ~ 60 ? C
