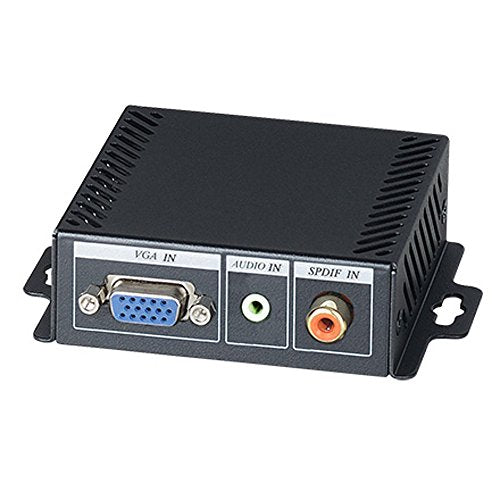

Element Hz ELE7009 VGA to HDMI Converter With Audio & Power Supply

The ELE7009 VGA to HDMI converter allows you to convert VGA along with analog audio or SPDIF digital audio via one HDMI cable. For example, you can plug a laptop or PC in and see it on any HDTV with an HDMI input – with up to 1920 x 1200 resolutions. What’s more, The ELE7009 features built-in audio selection for stereo/digital audio!

Matched Resolution
This product converts the VGA signal to HDMI at the resolution of the VGA video source. So, if the VGA source is set to 480i, 720p or 1080i, 1080p, it will be converted to HDMI at the same corresponding resolution. It supports HDMI and DVI output (with the requirement of an HDMI to DVI cable/adapter – sold separately) at different resolutions, but requires that your TV/Monitor supports the resolution you want to display. Additionally, the converter encodes analog stereo audio or digital audio on to the video signal for HDMI video and audio.

Caution:
Supports HDMI and DVI Output at different resolutions, but requires that your TV/Monitor supports the resolution to display. When using a DVI-D display, an HDMI to DVI cable/adapter is required. (Sold separately) SPDIF audio input only supports 48K, 16-Bit LPCM.

Resolutions Supported:
800 x 600 @ 60Hz,1024 x 768 @ 60Hz, 1152 x 864 @ 60Hz, 1280 x 720 @ 60Hz, 1280 x 768 @ 60Hz, 1280 x 800 @ 60Hz, 1280 x 960 @ 60Hz, 1280 x 1024 @ 60Hz, 1360 x 768 @ 60Hz, 1400 x 1050 @ 60Hz, 1440 x 900 @ 60Hz, 1600 x 900 @ 60Hz, 1600 x 1024 @ 60Hz, 1600 x 1200 @ 60Hz, 1600 x 1050 @ 60Hz, 1920 x 1080 @ 60Hz, 1920 x 1200 @ 60Hz

Specifications:
• Video Input/Output: VGA 920 x 1200 @ 60Hz, HDMI Type A
• Digital Audio Input: SPDIF RCA
• Operation Temperature: 0 to 70
• Storage Temperature: -40 to 85
• Humidity: up to 95%
• Power Supply: DC5V 1Amp
• Power Consumption: 50mA
• Dimensions: 3.62" x 2.97" x 0.98"
• Weight: 6oz
