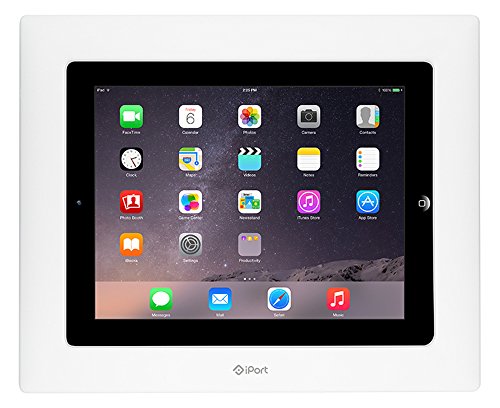

iPort CM-IW2000V2 Control Mount in-wall mount & Charger for iPad 2

Control Mount is a system that semi-permanently mounts and charges iPad in a wall or solid surface. The system consists of a mounting box, a fascia and retainer as well as supporting electronics. You can turn an iPad into a touch panel, digital sign, keeping iPad always charged and permanent in the wall.

Specifications:
• Power supply: 15V 1A DC, regulated
• Dimensions (W x H x D): 11.60" x 9.51" x 2.36"
• Cut-out Dimensions (W x H): 10.75" x 8.65"

System Capabilities:
• Rigidly supports iPad and provides an elegant appearance
• Charges iPad while it is mounted

What's Include:
• 1 x iPort in-wall mounting system
• 1 x Power wall plate
• 1 x Regulated power supply
• 1 x Installation cut-out template
• 1 x Instruction manual
• 1 x Suction cup removal tool
• 1 x Charging circuit board assembly
• 10 x Machine screws with integral washers

Installation Guide
The Control Mount features an integral Roto-Lock® mounting system for quick mounting directly into existing walls. Once the hole is cut and the cables have been run, you can install the Control Mount into the wall in a matter of seconds.
1. Determine the location for the Control Mount and the wall plate.
2. Perform an obstruction survey to ensure there are no studs, conduit, pipes, heating ducts, or air returns that will interfere with the Control Mount.
3. Find the cut-out template provided in the Control Mount packaging. Place in appropriate location between wall studs. Verify there are no horizontal fire blocks with-in cut out area. Place level on template to assure a level opening. Position the template where the Control Mount is to be located and pencil an outline on the wall.
4. Cut the opening using a drywall saw.
5. After cutting the opening, make sure the edges of the opening are smooth so the frame flange will rest flat against wall.
