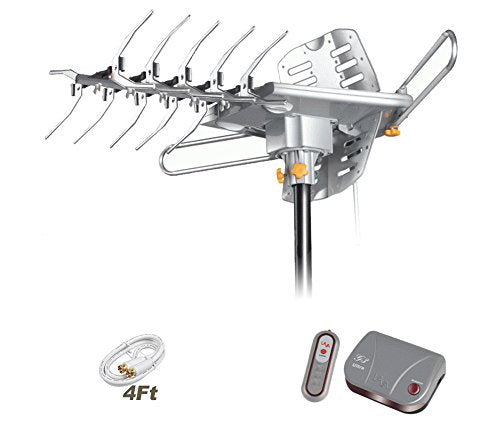

Lava Electronics HD-2605 Ultra Remote Controlled HDTV/UHF/VHF Antenna with G3 Control Box

The HD-2605 Ultra with G3 Control Box is our next generation antenna. It is powerful with a built-in super low noise amplifier, covering reception ranges up to 125 miles. One of the most exciting features of the HD-2605 HDTV Antenna (equipped with a motor rotor and a new G3 Control Box), is that you no longer need to go out to move the antenna for specified direction! Just use the remote control from the comfort of your home and you can find the best angle for your TV signal.

Specifications:
• Frequency(VHF): 40-300MHz
• Frequency(UHF): 400-860MHz
• Gain(VHF): 28+/-3dB
• Gain(UHF): 32+/-3dB
• Power: 3W
• Max. Rotation: 360?
• Impedance: 75?
• Max. Output Level: 145 dBµV
• Working Voltage: 110V/60Hz
• DC Input: 15-19V

What's included
• Antenna main unit
• Power Adapter
• Motor Rotor
• Control Box
• 3" RG6 Cable
• User Instruction

Installation guide
• Attach the main pole coloumn on the motor rotor using 4M4x12 screws
• Open the V-frequency vibrator and reflection panel, move the underprop to support the pannel
• Attach the motor rotor on the main unit using 4 x12 screws
• Screw the U-frequency vibrations on the square pipe using the butterfly screws
• Screw the square pipe to the main unit using a M4x18 Screw
• Connect the RG6 cable to the F Connector on the main unit
