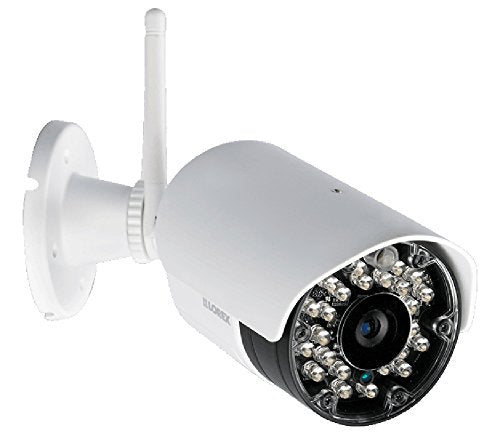

Lorex LW2231 Day/Night Indoor/Outdoor Wireless IP Camera with 3.6mm Fixed Lens and Audio

Experience the alternative to wired cameras with the LW2231 and enjoy simple, clutter-free installation that will save you time and money. The secure real-time video signal is protected by our Signal Guard technology which maintains a steady and reliable connection to your system. These cameras are wireless friendly meaning conflicts with competing signals have been minimized with next generation interference reduction technology. Enjoy clear and fluid wireless footage day or night with night vision up to 135ft. Weatherproof and vandal resistant, the LW2231 is designed to meet your needs.

Specifications:

General
• TX Frequency Range: 2.400GHz~2.480GHz
• TX Power: 16dBm
• Unobstructed Effective Range: 165ft (50m) indoor, 500ft (152m) outdoor
• Data Rate: 4 Mb/s
• Modulation: GFSK
• Spread Spectrum: FHSS
• Operating Temperature Range: 14°F ~ 122°F / -10°C ~ 40°C

Camera
• Image Sensor Type: 1/4” Color CMOS Image Sensor
• Effective Pixels: H: 640 V: 480
• Image Compression: MPEG4
• Image Resolution: VGA (640x480)
• Lens: 3.6mm F2.0
• Field of View (Diagonal): 55°
• AGC: On
• Power Requirement: 9V DC +/- 5%
• Power Consumption: 430mA Max with IR LED, 220mA Max without IR LED
• Environment Rating: IP66
• Night Vision Range2: 90ft (27m) / 135ft (41m)
• Built in Auto IR Turn On / Off: CdS Drive Auto IR LED turn On/Off Circuit

Receiver
• Receiving Frequency Range: 2.400GHz~2.480GHz
• RX Sensitivity: -81dBm
• Demodulation: GFSK
• Data Rate: 4 Mb/s
• Supported Resolution: VGA (640x480) up to 25 frames per second
• Termination: BNC video
• Power Requirement: 9V DC +/- 5%
• Power Consumption: 270mA Max
• Operating Temperature Range: 14°F ~ 122°F / -10°C ~ 40°C
