Multifunctional CE EPA 3.5Ton 5Ton 6Ton 10Tonne 4X4 Farm Off Road Forklift trucks All Rough Terrain Diesel Forklift
Multifunctional CE EPA 3.5Ton 5Ton 6Ton 10Tonne 4X4 Farm Off Road Forklift trucks All Rough Terrain Diesel Forklift
Couldn't load pickup availability
- Applicable Industries : Farms, Construction works
- Showroom Location : None
- Condition : New, New100%
- Place of Origin : Shandong, China
- Brand Name : FLT
- Power Souce : Diesel Engine
- Min. Lifting Height : 3000mm
- Fork Length : 1220mm
- Fork Width : 140mm
- Overall Dimensions : 4200*1850*2700mm
- Warranty : 1 Year
- Machinery Test Report : Provided
- Video outgoing-inspection : Provided
- Warranty of core components : 1 Year
- Core Components : Pump, Gearbox
- Weight (KG) : 4200 kg
- Product Name : Diesel Forklift Truck
- Key words : Off-road Forklift Truck
- Lifting height : 3m~ 6m
- Power : 40kw
- Loading Capacity : 3500kg
- Drive mode : 4wd
- Color : Customer Demanded
- Mast : 2 Stage/3 Stage
- Feature : High Efficiency
Lifts 1.5ton to 10ton off-road diesel forklift
Meets CE EPA EuroV
Products Description

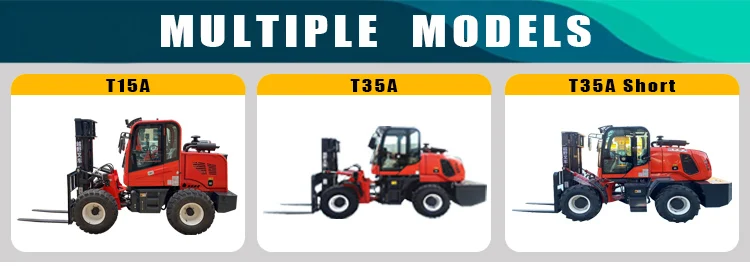

Model |
T15A |

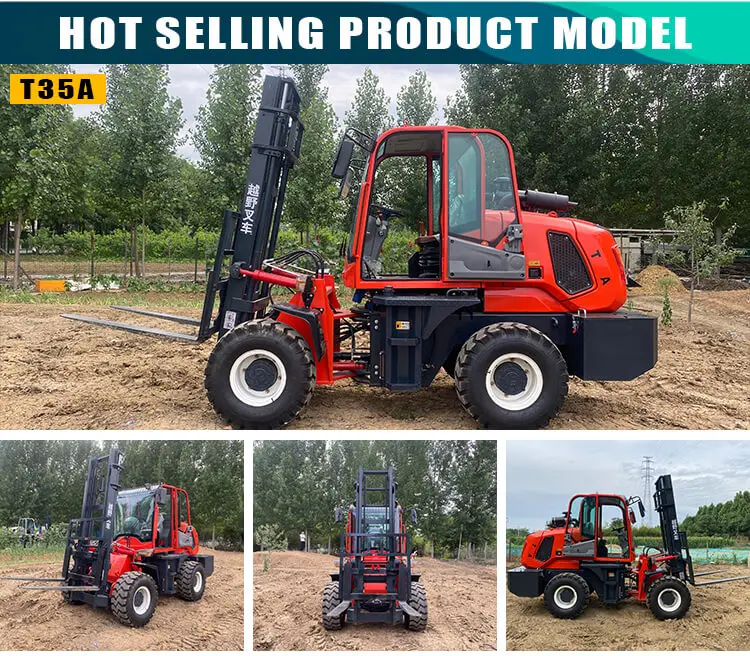

T35A |
T35A Short |
Engine |
Weifang490，40kw |
Xichai/Yunnei493VP，36.8kw |
Xichai/Yunnei493VP，36.8kw |
Drive mode |
4wd |
4wd |
4wd |
Gearbox |
265 torque converter |
265 high low speed torque converter |
265 high low speed torque converter |
Axle |
Isuzu |
Wheel reduce |
Wheel reduce |
Tire |
825-16 |
23.5/70-16 |
23.5/70-16 |
Wheelbase |
1800mm |
2200mm |
1980mm |
Rated lifting weight |
1500kg |
3500kg |
3500kg |
Rated lifting height |
3000mm |
3000-6000mm |
3000-6000mm |
Load center distance |
500mm |
600mm |
600mm |
Min. turning radius |
2800mm |
3500mm |
3200mm |
Max. climbing angle |
≤35° |
≤38° |
≤38° |
Min. ground clearance |
250mm |
350mm |
350mm |
Tilt of the mast,front/rear |
10°/6° |
10°/6° |
10°/6° |
Speed |
30km/h |
38km/h |
38km/h |
Max. hook traction |
15Kn |
25Kn |
25Kn |
Mast steel width |
120mm |
160mm |
160mm |
Fork length |
1220mm |
1220mm |
1220mm |
Machine weight |
2800kg |
4200kg |
4200kg |
Machine size |
3200*1600*2300mm |
4200*1850*2700mm |
3800*1850*2300mm |

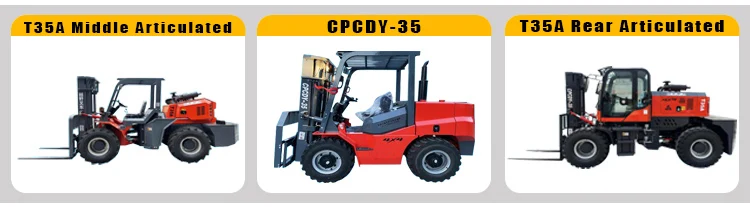

Model |
T35A Middle Articulated |
CPCDY-35 |
T35A Rear Articulated |
Engine |
Xichai/Yunnei493VP，36.8kw |
Yunnei/Quanchai495，55kw |
Xichai/Yunnei493VP，36.8kw |
Drive mode |
4wd |
4wd |
4wd |
Gearbox |
265 high low speed torque converter |
280 high low speed torque converter |
265 high low speed torque converter |
Axle |
Wheel reduce |
Wheel reduce |
Wheel reduce |
Tire |
23.5/70-16 |
12-16.5 |
23.5/70-16 |
Wheelbase |
1980mm |
1697mm |
2300mm |
Rated lifting weight |
3500kg |
3500kg |
3500kg |
Rated lifting height |
3000-6000mm |
3000-6000mm |
3000-6000mm |
Load center distance |
600mm |
600mm |
600mm |
Min. turning radius |
3200mm |
2500mm |
3200mm |
Max. climbing angle |
≤38° |
≤38° |
≤38° |
Min. ground clearance |
350mm |
320mm |
350mm |
Tilt of the mast,front/rear |
10°/6° |
10°/8° |
10°/8° |
Speed |
38km/h |
35km/h |
38km/h |
Max. hook traction |
25Kn |
30Kn |
25Kn |
Mast steel width |
160mm |
160mm |
160mm |
Fork length |
1220mm |
1220mm |
1220mm |
Machine weight |
4200kg |
5500kg |
4500kg |
Machine size |
3600*1850*2150mm |
3200*1500*2300mm |
3700*1850*2350mm |
Model |

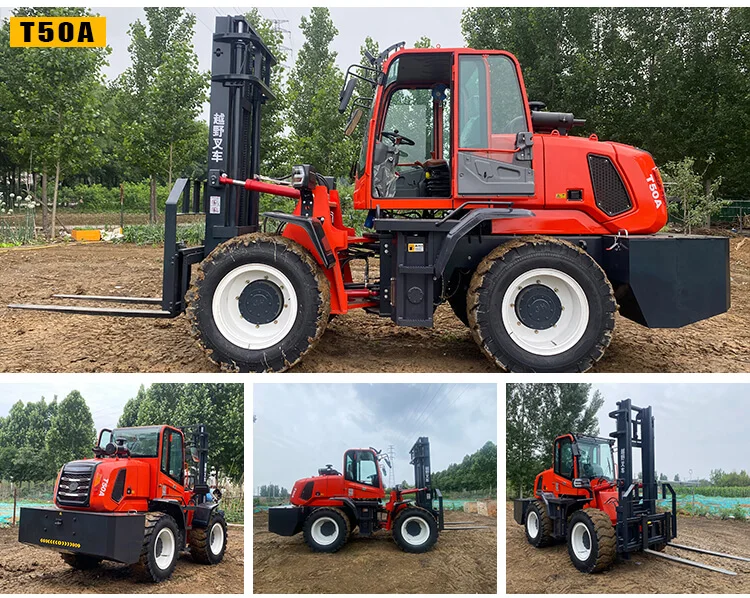

T50A |
T50A Short |

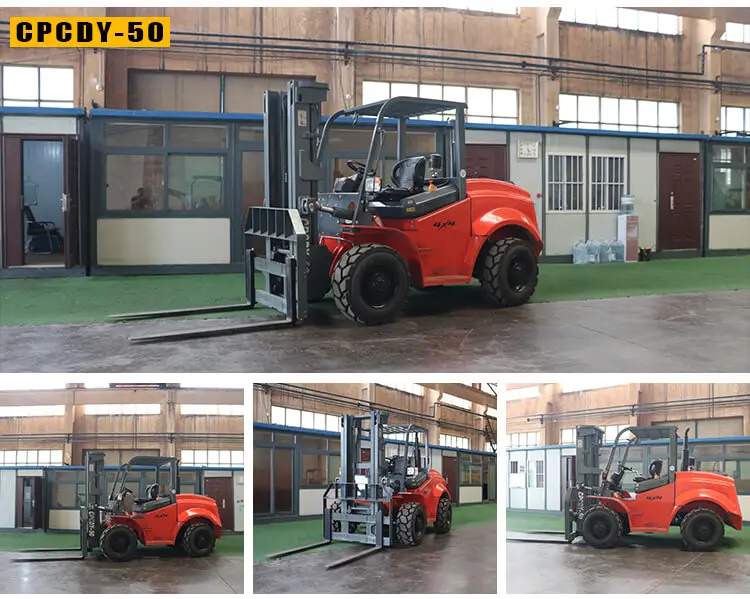

CPCDY-50 |
Engine |
Xichai/Yunnei4102，80-83kw |
Huajie 4102 |
Yunnei4102，80kw |
Drive mode |
4wd |
4wd |
4wd |
Gearbox |
265 high low speed torque converter |
265 high low speed torque converter |
280 high low speed torque converter |
Axle |
Wheel reduce |
Wheel reduce |
Wheel reduce |
Tire |
16/70-24 |
16/70-20 |
12-16.5 |
Wheelbase |
2400mm |
19800mm |
1890mm |
Rated lifting weight |
5000kg |
5000kg |
5000kg |
Rated lifting height |
4000-6000mm |
3000-6000mm |
3000-6000mm |
Load center distance |
600mm |
600mm |
600mm |
Min. turning radius |
3800mm |
4200mm |
3200mm |
Max. climbing angle |
≤38° |
≤38° |
≤38° |
Min. ground clearance |
380mm |
380mm |
350mm |
Tilt of the mast,front/rear |
10°/6° |
10°/8° |
10°/8° |
Speed |
45km/h |
38km/h |
35km/h |
Max. hook traction |
35Kn |
35Kn |
30Kn |
Mast steel width |
180mm |
175mm |
180mm |
Fork length |
1520mm |
1220mm |
1520mm |
Machine weight |
5500kg |
5000kg |
6500kg |
Machine size |
4500*1900*2850mm |
4200*1920*2500mm |
3500*1892*2300mm |

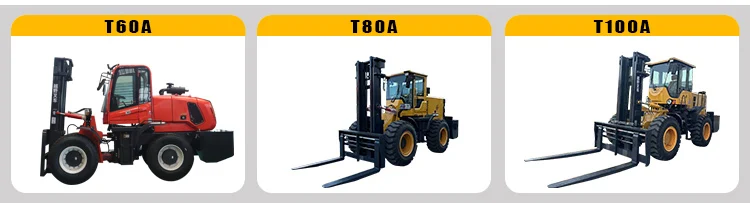

Model |

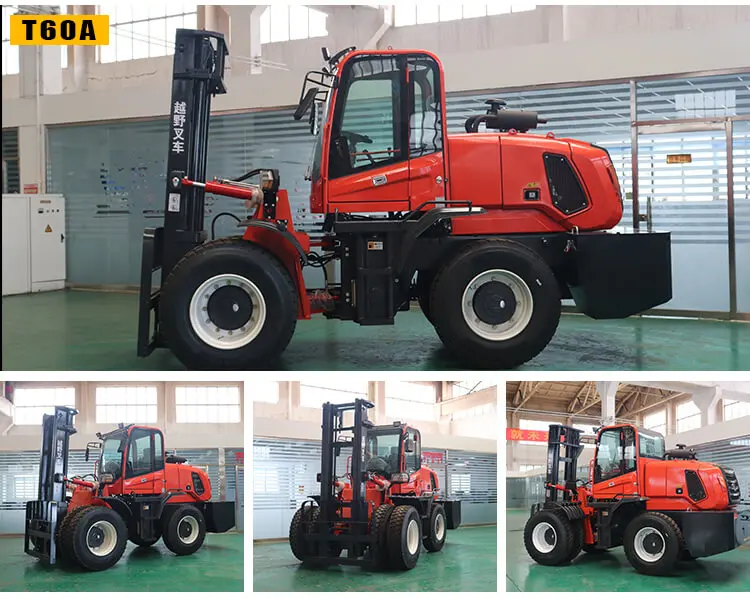

T60A |
T80A |
T100A |
Engine |
Xichai/Yuchai4105，90-103kw |
Yuchai4108，110kw |
WeichaiWP6 6105，92kw |
Drive mode |
4wd |
4wd |
4wd |
Gearbox |
280 high low speed torque converter |
315 high low speed torque converter |
315 high low speed torque converter |
Axle |
Wheel reduce |
Wheel reduce |
30 |
Tire |
12R22.5(4/2) |
17.5-25 |
17.5-25 |
Wheelbase |
2400mm |
2800mm |
3000mm |
Rated lifting weight |
6000kg |
8000kg |
10000kg |
Rated lifting height |
4000-6000mm |
4000-6000mm |
4000-6000mm |
Load center distance |
600mm |
800mm |
800mm |
Min. turning radius |
4500mm |
5500mm |
6500mm |
Max. climbing angle |
≤38° |
≤38° |
≤38° |
Min. ground clearance |
380mm |
380mm |
380mm |
Tilt of the mast,front/rear |
10°/8° |
10°/8° |
10°/8° |
Speed |
45km/h |
45km/h |
45km/h |
Max. hook traction |
35Kn |
55Kn |
60Kn |
Mast steel width |
180mm |
200mm |
220mm |
Fork length |
1520mm |
1520mm |
1520mm |
Machine weight |
6500kg |
10500kg |
12000kg |
Machine size |
4600*2200*2850mm |
5800*2200*3100mm |
5800*2400*3300mm |
Features

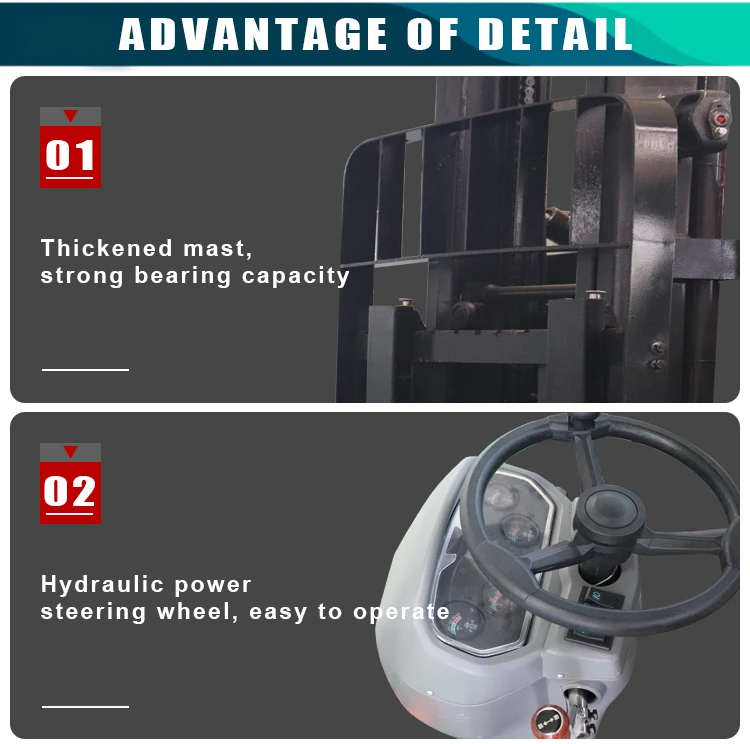

1.Thickened mast, strong bearing capacity.
2.Hydraulic power steering wheel, easy to operate.

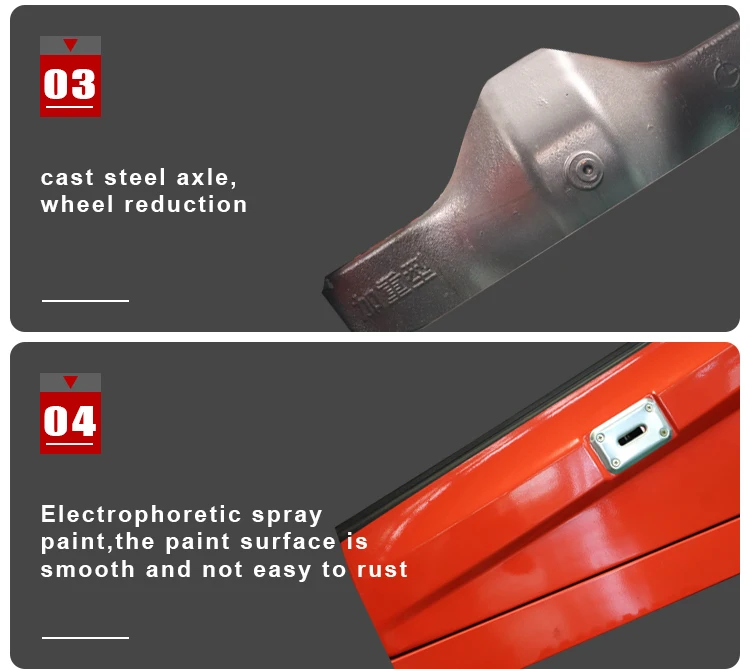

3.cast steel axle,wheel reduction.
4.Electrophoretic spray paint,the paint surface is smooth and not easy to rust.
4.Electrophoretic spray paint,the paint surface is smooth and not easy to rust.

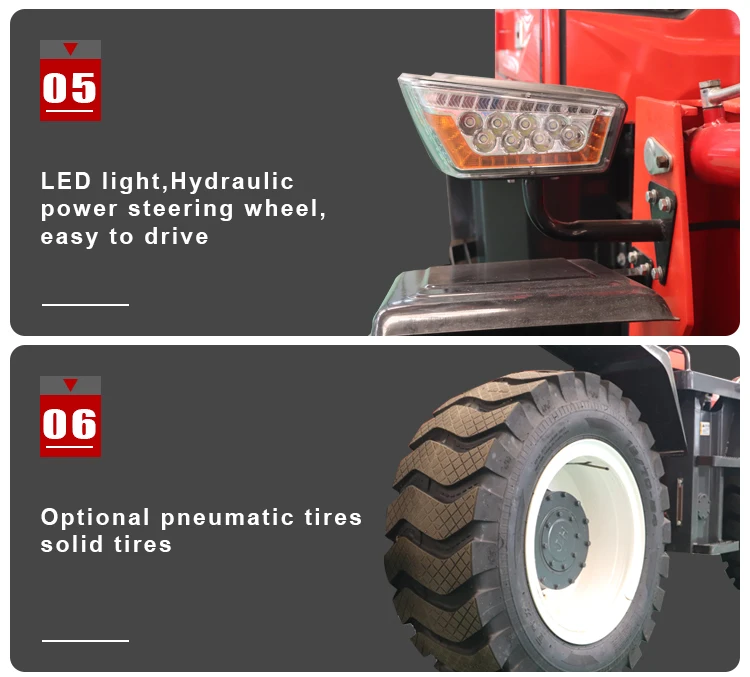

5.LED light,Hydraulic power steering wheel, easy to drive
6.Optional pneumatic tires/solid tires
