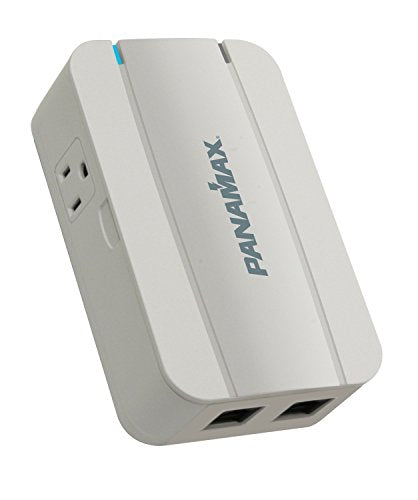

Panamax MD2-TL 2-Outlet Direct Plug-In Surge Protector with Telephone and LAN Line Protection - White

Keep your devices safer from power surges with the Panamax MD2-TL MAX 2 2-Outlet Surge Protector. It completely disconnects AC power to all of the connected equipment at the other end of the unit. This UL listed surge protector offers two outlets worth of protection and helps keep low power surges from traveling through telephone and LAN cables. It provides a total of 1,350 joules and has a thin profile that's just 1.5" deep. The Panamax surge protector is equipped with both RFI and EMI filtration for clean reliable power. The device has two LED status indicators for simple reading. Add it to a home office or anywhere you have important devices. This surge protector is simple to install and can be put to use in minutes.

Specifications:
• Family: Direct Plug Ins
• Line Voltage: 120 (Volts)
• Number of Outlets: 2
• Compliance: C-UL (UL standard #1449)
• Maximum Current Rating: 15 (Amps)
• Initial Clamping Level: 200V Peak
• Filtration Technology: RFI/EMI Filtration
• Filtration Rating: 50 dB @ 100 kHz - 1 MHz

Installation Instruction:
1. Turn off the equipment you are plugging into the MD2-TL.
2. Plug the surge protector into the wall outlet. A red "Line Fault" light indicates an improperly wired outlet that must be checked by a qualified electrician.
3. If the blue "Power On Protection OK" light is on, plug your equipment into the AC outlets on the surge protector.
4. Connect incoming LAN or Telephone lines to the LAN /TEL IN connection. The protection circuitry only works if connected properly. The incoming line from the wall outlet must be plugged into the “LAN /TEL IN” jack. The telephone equipment or modem must be plugged into the “LAN /TEL OUT” jack
5. Turn the connected equipment ON and check for power and correct operation.
