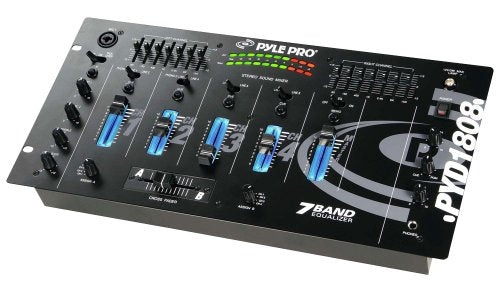

Pyle PYD1808 19 inch Rack Mount 4 Channel Professional Mixer with 7-Band EQ

The PYD1808 is a powerful, 4-channel rack mountable mixer. This mixer is equipped RCA line inputs and 2 mic inputs (one balanced XLR/1/4' combo with high and low rotary EQ, one 1/4'' jack). A talkover switch easily allows you to play music and hear the MC's voice at the same time. Master left/right channels have 7-band EQ. Outputs include a 1/4'' headphone jack, an RCA booth output so you can hear your mix in while DJing, and the 2 master outputs: one pair of stereo RCA jacks, one pair of XLR jacks for balanced output to an amplifier or receiver. The assignable crossfader lets you move smoothly between any 2 input channels of your choice. Dual VU meter indicates the levels of the left and right master channels, so you'll know if your mix is too loud, too quiet, or just right. The PYD1808 runs on both 110 and 220 V.

Specifications

Input Sensitivity/Impedance
Mic 1-2: 1.5 mV/600 Ohms, bal/unbal
Phono 1-2: 3.0 mV/50K Ohms
Line 1-8: 150.0 mV/27K Ohms

Output Level
Amp: 1.5 V/10-kOhms
Booth: 1.5 V/10-kOhms
Record: 150mV/10-kOhms
Frequency Response : 20Hz – 20kHz +/- 3 dB

S/N Ratio (at 1 kHz)
Mic: >60 dB/1.5mV input
Phono: >70 dB/3.0mV input
Line: >80 dB/150.0 mV input

Distortion
Mic: 0.20%
Phono: 0.05%
Line: 0.03%

Equalizer
Control Frequencies: 60, 150, 400, 1K, 2.4k, 6k,and 15k
Boost/Cut Range: +/- 12 dB from center

MIC Tone Control
Treble: 10kHz; +12/-12dB
Bass: 100Hz; +12/-12dB

Talkover Attenuation: -16dB
Power Source: 120 VAC, 60Hz/230 VAC, 50 Hz
Dimensions, inches: 19.0 x 3.86 x 9.45
