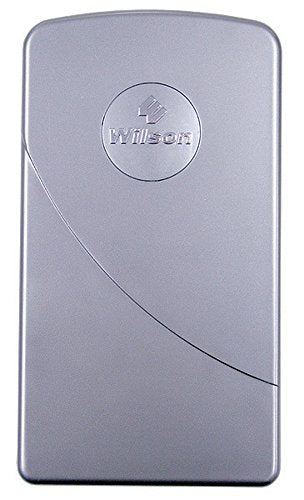

Wilson 301141 Multi-Band Outside Cradle Cellular Antenna 75 Ohm
Sale price
$137.85
Regular price
Regular price
$137.85
Unit price
per
Innovative Technology
User-Friendly Design
Reliable Performance
Couldn't load pickup availability
Description
The Wilson 311141 (Formerly 301141) Outdoor SignalBoost Cradle multi-band antenna is built for the desktop amplifier series and features up to 5.5 dB of gain. The Wilson 311141 antenna improves signal transmission between your Wilson amplifier and your nearest cellular signal tower. It is designed for fixed home or office installations.
Specifications:
 Frequency Range: 806-894MHz & 1850-1990MHz
 Impedance: 75 Ohms
 Antenna Gain:
- 2.4 dBi (700-800MHz)
- 5.5 dBi (824-894MHz)
- 3.6 dBi (880-960MHz)
- 1.2 dBi (1710-1880MHz)
- 5.5 dBi (1850-1990MHz)
- 4.7 dBi (2110-2170MHz)
 Beam Width Horizontal Plane: 180 degrees
 Beam Width Vertical Plane: 180 degrees
 Polarization: Vertical
 VSWR: < 2.0
 Ground Plane: Built-In
 Connector: F Female
Installation Instructions
Mount the antenna in the vertical position in an elevated and unobstructed place such as roof or high outside wall, away from other antennas, glass windows, and metal objects. Antenna should be as high and unobstructed as possible. Locating your nearby cellular tower used by your carrier and moving/directing your antenna towards it is very important for optimal installation of any outdoor antennas in a line-of-sight with the tower. Follow antenna-specific installations instructions for details.
Specifications:
 Frequency Range: 806-894MHz & 1850-1990MHz
 Impedance: 75 Ohms
 Antenna Gain:
- 2.4 dBi (700-800MHz)
- 5.5 dBi (824-894MHz)
- 3.6 dBi (880-960MHz)
- 1.2 dBi (1710-1880MHz)
- 5.5 dBi (1850-1990MHz)
- 4.7 dBi (2110-2170MHz)
 Beam Width Horizontal Plane: 180 degrees
 Beam Width Vertical Plane: 180 degrees
 Polarization: Vertical
 VSWR: < 2.0
 Ground Plane: Built-In
 Connector: F Female
Installation Instructions
Mount the antenna in the vertical position in an elevated and unobstructed place such as roof or high outside wall, away from other antennas, glass windows, and metal objects. Antenna should be as high and unobstructed as possible. Locating your nearby cellular tower used by your carrier and moving/directing your antenna towards it is very important for optimal installation of any outdoor antennas in a line-of-sight with the tower. Follow antenna-specific installations instructions for details.
