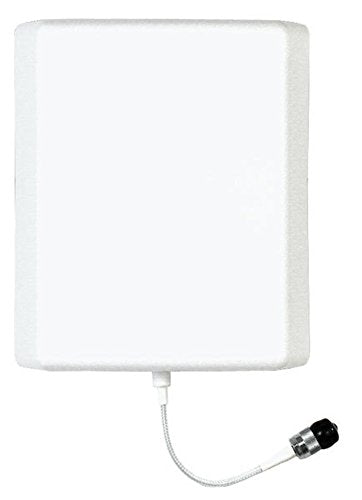

Wilson 301157 Cellular Dual Band Directional Outdoor Panel Antenna

The Wilson 301157 Dual Band Outdoor Antenna is a dual band antenna with 7 / 10 dB of gain. The antenna picks up signal from the nearest cell tower, and is designed to be used with one of the amplifiers on our site. The antenna is made of ABS plastic and designed to attach to an exterior wall or pole. The low profile is unobtrusive and blends in with the surrounding environment.

Specifications:
• Frequency: Dual Band
• Impedance: 50 ohm
• Coaxial Cable: None
• Antenna Gain (low band / high band): 7 / 10
• Dimensions (inches): 8.27" x 7.09" x 1.73"
• Frequency detail: 824 - 849 MHz / 869 - 894 MHz and 1850 - 1910 MHz / 1930 - 1990 MHz
• Ground Plane: Built-In Ground Plane
• Material: ABS Plastic
• Max Power: 50 Watts
• Mount: Mounts to wall
• Polarization: Vertical
• Radiation: Directional
• Connector Type: N Female
