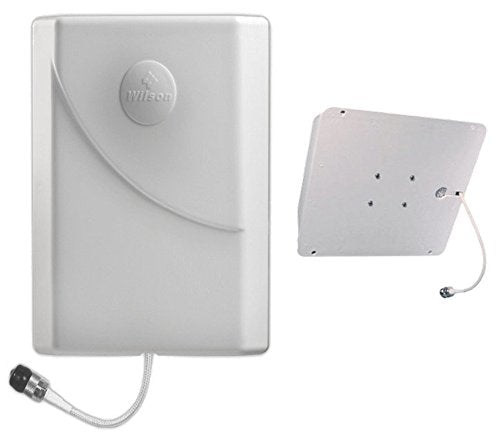

Continue shoppingWILSON 304471 Ceiling-Mount Panel Antenna| 700MHz - 2|700MHz| 75_ Vertically Polarized with F Female Connector
Wilson
Art: CL304471
Increments of 1
Minimum of 1
Maximum of
100Low stock
100In stock, ready to ship
Sale price
$223.50
-100%
Regular price
Regular price
$223.50
Unit price
per
WILSON 304471 Ceiling-Mount Panel Antenna| 700MHz - 2|700MHz| 75_ Vertically Polarized with F Female Connector
Sale price
$223.50
Regular price
Regular price
$223.50
Unit price
per
Innovative Technology
User-Friendly Design
Reliable Performance
Couldn't load pickup availability
Description
The Wilson 304471 Indoor Ceiling Dome Antenna is a 700-2500MHz antenna with 5-10 dB of gain. It is an indoor antenna, designed to rebroadcast the boosted signal from one of our amplifiers. The antenna is a wide band antenna and so can be used with all amplifiers on our site. The antenna is made of white ABS plastic and is suitable for indoor use only.
Specifications:
 Frequency & Gain:
- 700-800 MHz: 5.2 dB
- 824-894 MHz: 4.4 dB
- 880-960 MHz: 4.2 dB
- 1710-1880 MHz: 10.1 dB
- 1850-1990 MHz: 10.6 dB
- 2110-2170 MHz: 8.2 dB
 Impedance: 75 ohms
 Polarization: Vertical
 Max Power: 50 watts
 Beamwidth Hor. Plane: 70°/60°
 Beamwidth Ver. Plane: 50°/45°
 VSWR: 1.5:1
 Connector: F-Female
 Dimensions: 8.27 x 7.09 x 1.73 inches
 Ground Plane: Built-in Ground Plane
 Front to Back Ratio: N/A
Installation Instructions
Ensure that you purchase the correct impedance antenna for your amplifier system. 50 ohm antennas (with N connectors) go with 50 ohm systems and 75 ohm antennas (with F connectors) go with 75 ohm systems. Panel antenna installation is easy. Just choose your preferred mounting style. Attach the mount in the optimal place on wall, ceiling, or pole. Attach the antenna to the fixed mount. And connect the installed antenna to the amplifier using a separate N-Male (50 ohm) or F-Male (75 ohm) cable. Panel Antennas are directional antennas which will transmit and receive signal mostly from the front. It can be installed both vertically on walls or poles (weather-resistant version) and horizontally on ceilings. Please use the appropriate mount for each specific installation. This is a building antenna so large vehicle installations will require secure installation using appropriate mounts to prevent antenna vibration and shifting inside the mount.
Specifications:
 Frequency & Gain:
- 700-800 MHz: 5.2 dB
- 824-894 MHz: 4.4 dB
- 880-960 MHz: 4.2 dB
- 1710-1880 MHz: 10.1 dB
- 1850-1990 MHz: 10.6 dB
- 2110-2170 MHz: 8.2 dB
 Impedance: 75 ohms
 Polarization: Vertical
 Max Power: 50 watts
 Beamwidth Hor. Plane: 70°/60°
 Beamwidth Ver. Plane: 50°/45°
 VSWR: 1.5:1
 Connector: F-Female
 Dimensions: 8.27 x 7.09 x 1.73 inches
 Ground Plane: Built-in Ground Plane
 Front to Back Ratio: N/A
Installation Instructions
Ensure that you purchase the correct impedance antenna for your amplifier system. 50 ohm antennas (with N connectors) go with 50 ohm systems and 75 ohm antennas (with F connectors) go with 75 ohm systems. Panel antenna installation is easy. Just choose your preferred mounting style. Attach the mount in the optimal place on wall, ceiling, or pole. Attach the antenna to the fixed mount. And connect the installed antenna to the amplifier using a separate N-Male (50 ohm) or F-Male (75 ohm) cable. Panel Antennas are directional antennas which will transmit and receive signal mostly from the front. It can be installed both vertically on walls or poles (weather-resistant version) and horizontally on ceilings. Please use the appropriate mount for each specific installation. This is a building antenna so large vehicle installations will require secure installation using appropriate mounts to prevent antenna vibration and shifting inside the mount.
