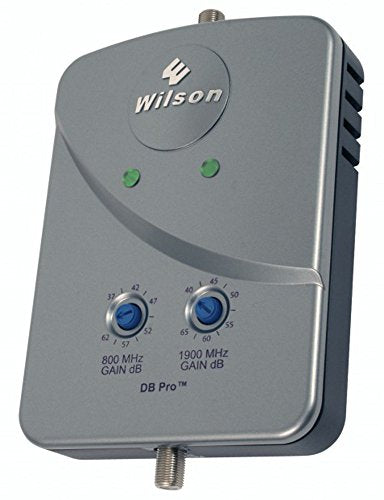

Wilson 801262 DB Pro cell phone signal booster (Amplifier Only) with huge +65dB gain, is designed for homes, offices, fire stations, command posts, and buildings with multi-room coverage requirement. Paired with Wilson's external and internal antennas, the DB Pro amplifier can cover homes and buildings with a 5,000 square feet area, depending on outside signal and other factors. This high performance amplifier is remarkably easy to set up, and even uses standard RG-6 coax, already pre-wired in many homes and offices. This is a 75 ohm amplifier. The DB Pro features separate Adjustable Gain knobs for each band giving the user greater flexibility with signal distribution and inside antenna placement. The amplifier wirelessly supports multiple cell-phone and data-card connections simultaneously, and operates in Dual-Band - providing coverage for all carriers that use CDMA, TDMA, GSM and 3G (Nextel/iDen and 4G are not supported). We also carry pre-configured kits featuring this great amp - check out the 841262 and 841263 kits for great savings.
Specifications:  Frequency: 824-894 MHz / 1850-1990 MHz  Gain: 62 dB / 65 dB  Max Uplink Power: 1200 mw / 1114 mw  Max Downlink Power: 26 dBm / 25 dBm  Noise Figure: 3.5 dB Nominal  Flatness: ±5 dB  Power Requirements: 120-240 V AC, 50-60 Hz, 8 W  Connectors: F-Female  Dimensions: 6.2 x 4.2 x 1.5 inches  Weight: 0.64 lbs / 0.29 kg
