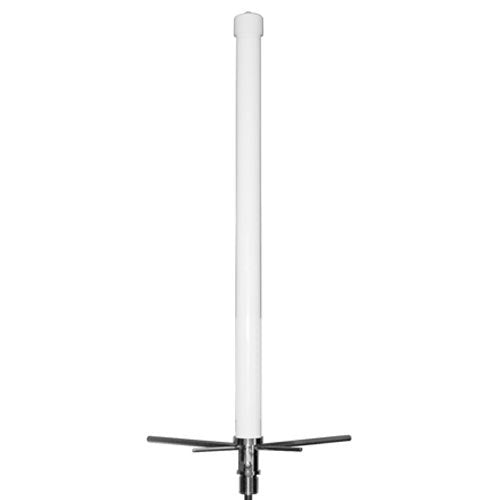

Wilson Electronics WI301202 Wilson 301202 Omni Directional Building Antenna 800 -1900 MHz

The Wilson 301202 is a building antenna which is a convenient and durable exterior antenna for a home/business based repeater kit. The antenna is dual band, as so is ideally suited for use with the Wilson SOHO 801245. It may also be connected directly to your cell phone, with the appropriate adapter cable (see below). The antenna is made of fibreglass, and is fully weatherproof.

Specifications:
• Frequency: Dual Band, iDEN
• Impedance: 50 ohm
• Coaxial Cable: RG58 - 14"
• Antenna Gain (low band / high band): 5.12 / 6.12
• Frequency detail: 824 - 849 MHz / 869 - 894 and 806 - 821 MHZ / 851 - 866MHz and MHz and 1850 - 1910 MHz / 1930 - 1990 MHz
• Height (Inches): 18"
• Ground Plane: Built-In Ground Plane
• Material: Fibreglass
• Mount: Mounts on pipe with 0.5 inch to 1.5 inch diameter
• Polarization: Vertical
• Radiation: Omni-directional
• Connector Type: N Female

Installation:
The Wilson 301202 is an omni-directional antenna. Omni-directional antennas receive signal from all directions, and so the antenna needs to be installed in a vertical position in the area of strongest signal.

Mounting details:
The Wilson 301202 contains mounting hardware to attach to a pole up to 1-3/4" in diameter. The pole is not included.
