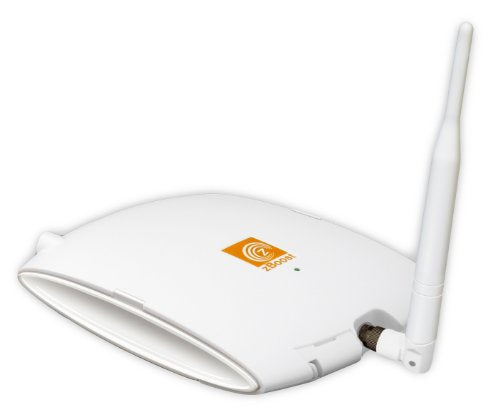

zBoost SOHO ZB545 - Cell Phone Signal Booster for Small Homes and Offices

The zBoost SOHO ZB545 boosts cell phone signals for voice and text for all major carriers. zBoost SOHO captures the reliable cellular signal you have outdoors and rebroadcasts it indoors, up to 2,500 square feet, so you can enjoy clearer, faster and more reliable service without interruption.

Everything you need is included: amplifier base unit, indoor antenna, power supply, 50 ft. of RG-6 cable, external antenna, and mounting hardware.

Specifications:

PCS
• Frequency: 1850 to 1990 MHz
• System Gain: 64 dB
• PCS band supported: A, D, B, E, F, C
• Networks: CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

Cellular
• Frequency: 824 to 894 MHz
• System Gain: 62 dB
• Cellular band supported: A, B, A’, B’
• Networks: CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

General
• Power Consumption – Power Supply Current: 3W standby; 7W max signal - 2.0A Max
• Wall Supply Input; Voltage: 100-240VAC 50-60 Hz; 5.0VDC
• System Certifications: FCC Parts 15 & 20, Industry Canada
• Base Unit Size and Weight: 5” x 7” x 1.25” – 9 oz.
• Operating Conditions: Indoor Use Only (40O- 105O F)
• Coverage (open areas): Up to 2,500 sq. ft.
