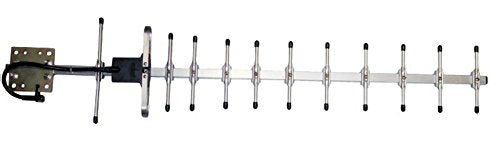

zBoost YX026-CEL 11 dBi Single-band Directional External Yagi Antenna

For maximum performance be sure to aim the antenna in the direction of your wireless provider's tower. If you know the direction of your provider’s tower, simply point the antenna in that direction. If you are unsure of the location of the nearest tower, see antenna aiming instructions below. Note: the closest tower to your location may not be for your specific provider. Some helpful hints are included if you are unsure where your tower is located.

The YX026-CEL yagi antenna replaces the standard omni-directional signal antenna and provides 11 dBi of gain. All hardware is included to mount on masts up to 1 5/8” diameter.

Specifications:
• Frequency: 824-896 MHz
• Gain: 11 dBi
• Beamwidth: 40 degrees
• Polarization: Vertical
• Dimensions: 34.25”Lx 7.5”W
• Weight: 1.0 lbs.
• Connector: Type F Male
• Mounting: May be mounted on masts up to 1 5/8” diameter

Installation Steps:
1. Once you have determined the location of strongest signal, install a mast or pole (not provided) on which to mount the antenna.
2. Connect the antenna to the mast using the provided brackets loosely enough to allow rotation around mast. Before securing antenna hardware, take care in finding the optimum angle at which to aim the antenna
3. Connect the coax cable to the antenna.
4. Route the cable indoors and connect it to the base unit using the Cell Phone Signal Booster installation instructions.
