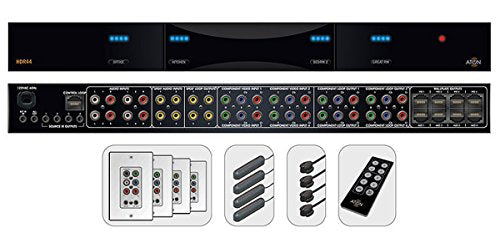

Aton HDR44KT 4 Source, 4 Zone HD Component Video and Audio Router Kit

The ATON HDR44 HD Video Router allows you to share four High Definition video sources from the family or theater room with four other areas throughout the house. Extend the HD and 5.1 Surround Sound experience to rooms such as the master bedroom, den or even the kid's play room, without needing to purchase multiple video sources for every room in the house.

Specifications
• Video Inputs and Outputs: Four (4) Component video inputs and four (4) buffered outputs, each with gold plated RCA connectors
• Audio Inputs and Outputs: Four (4) SPDIF Digital audio inputs and four (4) buffered outputs, each with gold plated RCA connectors; four (4) Analog audio inputs, each • with gold plated RCA connectors
• Wall Plate Outputs: Four (4) wall plate outputs, two (2) RJ-45 outputs per zone
• IR Input: External IR input (tip - IR, ring - ground, sleeve - 12V)
• IR Outputs: Four (4) source IR outputs and one (1) "ALL" IR output
• Control Loop Output: RJ-45 for system expansion
• Front Panel Source LEDs: Four (4) per zone
• System Cable: Cat. 5, two (2) per zone; maximum length 500 feet
• System Bandwidth: 185MHz, -3dB (90 MHz, -0.5dB)
• Supported Resolutions: 1080p, 1080i, 720p, 480p and 480i
• Chassis Dimensions: Without feet: 1.75" x 17" x 11"
• With feet 2.375" x 17" x 11"
• Weight: 9.6 pounds
• Wiring Requirements: Two (2) cat. 5 to each Wall Plate

Kit Includes
• 1 x HER44 HD Video Router
• 4 x R44WP HDReceive Wall Plates
• 4 x AIR1b IR Receivers
• 4 x AIE2 Talkback IR Emitters
• 1 x R44IRM Slimline IR Remote
