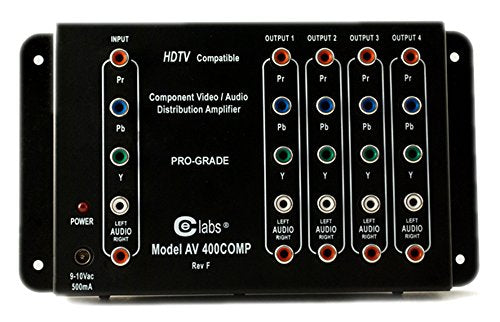

Cable Electronics AV400COMP High-Performance Component/HDTV 4 Way Distribution Amplifier

The AV400COMP allows any audio/video source with Y, Cb, Cr, or Y, Pb, Pr application outputs (component), to distribute audio and video. The signal ratio is true one to one with no loss from original source to four different locations. These locations must have the same application as your audio/video source.

Specifications:

Video
• Nominal input Level: 1V peak-to-peak
• Gain: 2V unterminated, 1V terminated; 75 Ohms
• Input Impedance: 75 Ohms
• Output Impedance: 75 Ohms
• In to Out Isolation: 50Hz to 10MHz 32dB port to port
• Out to In Isolation: 50Hz to 10MHz 60dB
• Return Loss: 50Hz to 10MHz 20dB
• Video Bandwidth: > 10MHz

Audio
• Gain: Unity
• Input Impedance: 22kOhm
• Output Impedance: 1kOhm
• THD: 0.05% at 1V input level
• Frequency Response: 20Hz to 100kHz
• Channel Separation: >75dB @ 1kHz
• In to Out Isolation: 60dB
• Out to Out Isolation: 60dB
• Signal to Noise: 100dB @ 2V (out)

Power
• Power Requirement: External 9 or 10V AC @ 500 mA with a 2.1mm ceter diameter coaxial connector
