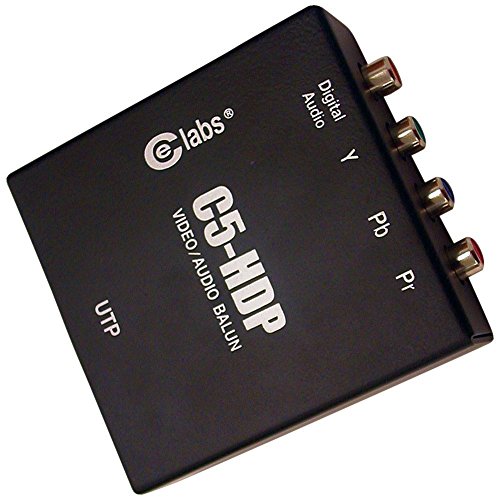

Cable Electronics C5-HDP Component Video and Coaxial Digital Audio Balun

The C5-HDP is a high quality, wide bandwidth balun, that is designed specifically to transport HD video over medium distance UTP cable runs. It has a set of four RCA connectors for component video and digital SPDIF audio. The UTP connector uses a standard CAT5/6 cable in order to transport the signals to a remote location. All four channels use the same wide bandwidth, custom balun transformer.

Specifications:

Video
• Nominal Input level: 1 Volt peak to peak
• Gain: N/A (Passive unit)
• Input Impedance: 75 ohms
• Output Impedance: Balanced 100 ohms
• Isolation port to port: >60 dB Isolation out to input
• Bi-directional Return loss: >15 dB
• Video bandwidth: > 35 MHz

• Audio
Digital/Analog: There is one audio channel available. It may be used to transport a SPDIF digital audio signal or a mono audio signal (mono analog signal will be attenuated slightly due to lower impedance of the Digital Audio channel).

• Power Requirement: External 9 or 10 Volt AC @ 600mA with a ( 2.1mm center) Coaxial connector.
