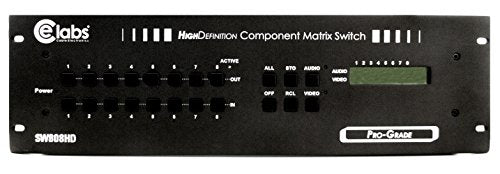

Cable Electronics SW808HD 8 x 8 Component HDTV Matrix Switcher with RCA Component Output

The SW808HD is a high performance, 8×8 Component HDTV Matrix Switcher, with Left/Right Audio, RS-232 and RS-485 control. High bandwidth and low crosstalk provides maximum picture performance.

Specifications

Video
• Input/Output Connectors: 8 Channels 3x RCA Female Connectors
• Signal Strength: 1 Volt Terminated
• Impedance: 75 ohms

Audio
• Input/Output Connectors: 8 Channels 2x RCA Female Connectors
• Signal Type: Stereo, Unbalanced
• Input impedance: 10k–ohms
• Output impedance: 100–ohms
• Max. Input Level: +19.5dBu
• Max. Output Level: +19.5dBu

Control Type:
• Serial Control Connectors: RS-232, 9-Pin Female D Type Connector
• Baud Rate and Protocol: 9600bps no, odd or even parity, 8-bit Transmission, 1-bit Stop
• Seriel Control Port: TX, RX, GND
• Control Procedures: AV Matrix PC Application

Parameters:
• Power: 100VAC~240AC, 50/60Hz, International Auto Switch
• Temperature: Storage, Operating Temp: -40°C - +85°C
• Humidity: Storage, Operating Temp: 10%–90%
• Dimensions: 485mm x 272mm x 140mm
• Weight: 10.6 lbs (4800g)
