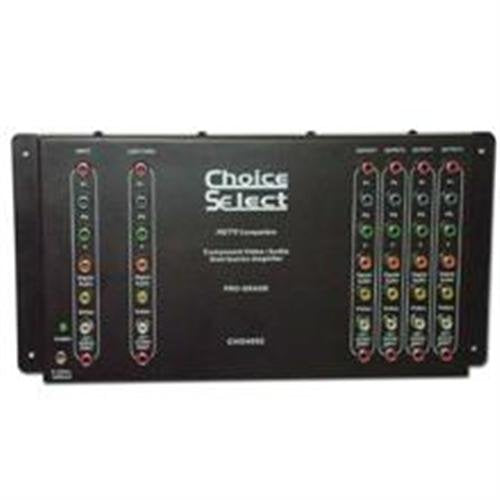

Choice Select CHO4052 5-Port Component Video / Audio Distribution Amplifier

CHO4052 provides for distribution of audio and video from a single source to multiple locations with no signal loss. The CHO4052 has one set of inputs and four sets of outputs and a loop- thru to go to the next amplifier. The unit allows any Audio/Video source, with Y, Cb, Cr, or Y, Pb, Pr Outputs (components), to distribute Audio and Video to five different locations without any signal loss. The amplifier also supports composite video and digital audio. Units can be looped, cascaded or put in tandem without loss of signals. Audio and Video cables need to be top quality and can have runs of up to 100 feet between units and 150 feet between units and TVs.

Audio Specifications
• ANALOG: Nominal input level: 1 volt peak to peak
• Gain: unity (one to one)
• Input impedance: 22k ohm
• Output impedance: 1k ohm
• Thd: 0.05%
• Frequency response: 20hz to 100khz
• Channel separation: >75db
• Port to port isolation: 60db
• Out to input isolation: 60d
• Signal to noise: 100db @ 2 volts out

Digital:
• Supports standard spdif digital audio
• Unity gain when terminated into 75 ohm (2x gain high imp.)
• Greater than 50mhz of bandwidth to ensure minimal degradation

Video Specifications (All Channels including Component and Composite)
• Nominal input level: 1 volt peak to peak
• Gain: 1 volt into 75 ohms (2 volts unterminated)
• Input impedance: 75 ohms
• Output impedance: 75 ohms
• Isolation port to port: 32 db
• Isolation out to input: 60 db
• Return loss: 18db
• Video bandwidth: 150mhz (HDTV requires 37mhz min.)

Power Requirments:
• External 9 volt AC @ 1000ma
• 2.1mm center coaxial connector.
• Power supply included.
• Dimensions: 13in x 6.5in x 1in
• Weight: 4.4 lbs
