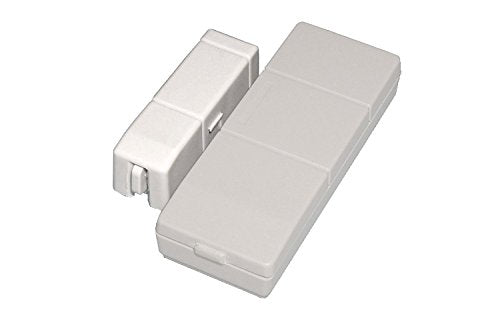

Linear DXS-32 Supervised Miniature Door and Window Wireless Transmitter - Ivory

The Linear DXS-32 Supervised Miniature Door/Window Transmitter is a battery powered stationary transmitter designed for use with Linear's DXS and DX format receivers. This transmitter can be used in a variety of wireless remote control applications. Triggering the transmitter with its built-in magnetic switch, an external switch or an external glass break detector sends a digitally coded wireless signal to its companion receiver.

The DXS-32 miniature door and window sensors are ideal for use with the Linear Security DVS-2400 and DVS-1200 wireless alarm system consoles. The DXT-32 can send three different codes: alarm, restore and low battery. All of the codes are pre-loaded in the factory so there is no field coding required. Once attached to your wireless alarm console you are ready to start securing your home or business!

In a typical installation, the magnet of the DXS-32 is mounted on a door or window and the transmitter is mounted on the frame. When the magnet moves more than 1/2" away from the transmitter, an alarm signal is sent. When the magnet returns next to the unit, a restore signal is sent. Alarms and restores can also be sent from external contacts wired to the terminal block. Pressing the case sends a test transmission that indicates the current state of the contacts.
