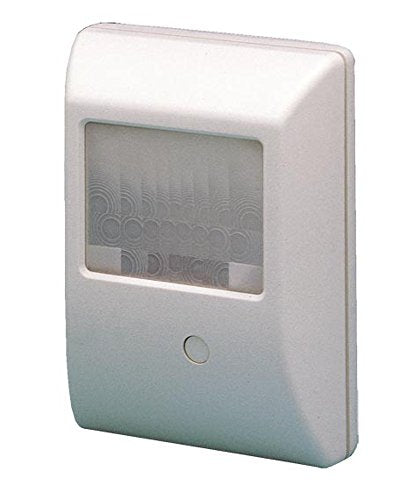

Linear DXS-54 Supervised Passive Infrared Motion Detector Transmitter

The Model DXS-54 Supervised Passive Infrared Motion Detector Transmitter is a battery powered passive infrared motion detector with a built-in transmitter designed for use with Linear’s DXS and DX format receivers and PERS consoles. In PERS installations, the DXS-54 functions to reset the PERS activity timer. When the passive infrared sensor detects motion in its field of view, the transmitter sends a digitally coded wireless signal to the PERS console.

Specifications:
• Power: one 9V alkaline battery (supplied)
• Current Consumption: 15 mA transmitting, 4 mA walk test, 8 µA standby, 15 µA timer mode
• Battery Life: Three years (typical)
• Battery Saver Timer: 4-minute software timer, rearms after alarm transmission
• Measured Range: 1,500 feet open air, with DVS 2400 control panel
• Accessories: Mounting hardware, including screws, double-stick tape
• Code Outputs: Alarm, supervisory, and low battery
• Detector: Balance dual element, pyroelectric
• Installed Lens: Standard Fresnel lens, 24 facets, 9 main, 8 intermediate, 5 short, 2 creep
• Detection Pattern: 30 feet x 30 feet
• PIR Sensitivity:: Preset, non-adjustable, pulse count of 3 with 8-second detection window
• Operating Frequency: 315 MHz
• Dimensions: 3.2" W x 4.4" H x 1.75" D
