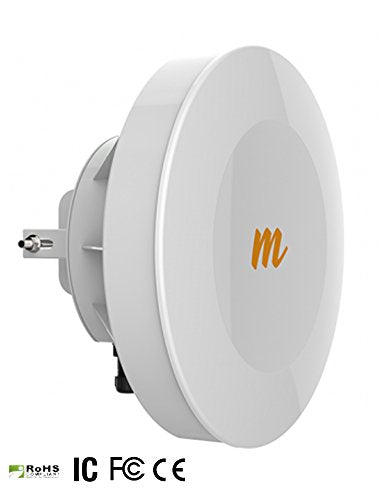

Mimosa Networks B5 5GHz 1 Gbps Integrated PtP Backhaul Radio with Antenna

The B5 is changing the way wireless is done. The B5 leverages 802.11ac, 4x4:4 MiMO and excellent engineering for service providers that demand the same capacity, speed and reliability as fiber. With 1.7 Gbps PHY and a unique spin on reliability, the B5 is redefining gigabit wireless technology. The B5 is capable of 1Gbps throughput, a low 2ms latency and has an integrated dual-polarized antenna with 25dBi of gain. Ready to handle the next wave of 5GHz, the B5 is operational from 5150-5850 MHz. The B5 brings with it an entirely new set of features never seen before in the outdoor wireless market.

Specifications:
• Max throughput: Up to 1.5Gbps IP aggregate UL/DL (1.7Gbps PHY)
• Low latency: 2+ ms
• Wireless protocols: TDMA, TDMA-FD
• MiMO & Modulation: 4x4:4 MiIMO OFDM up to 256QAM
• Bandwidth: Single or dual 20/40/80 MHz channels
• Frequency range: 5050-5875MHz (country restrictions may apply)
• Max output power: 30dBm (2-stream), 27dBm (4-stream)
• Gain: 25dBi
• Beamwidth: 3dB, 8deg
• Max power consumption: 20W
• Power method: 48VDC, 802.3 PoE
• ESD Protection: 6kV
• Operating Temperature: -40deg C to +55deg C (-40deg F to 131deg F)
• Security: 128-bit AES PSK with hardware
• QoS: Supports 4 pre-configured QoS levels
• Approvals: FCC part 15.407, IC RS10, CE, ETSI 301 893/302 502
• RoHS compliance: Yes
• Safety: UL/EC/EN/ 60950-1 + CSA-22.2
