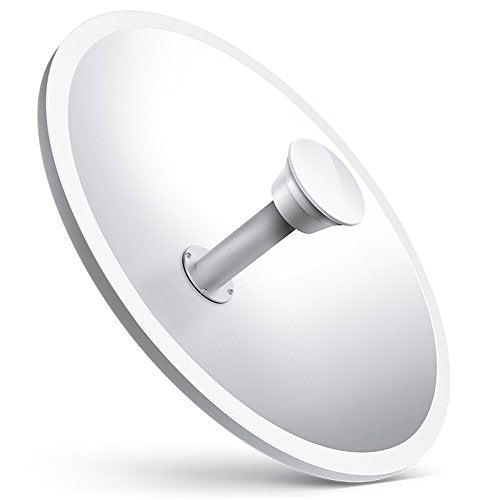

TP-Link TL-ANT5830MD 5GHz 30dBi 2×2 MIMO Parabolic Dish Antenna with Rp-sma Female Connector

The Pharos Dish Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. This antenna feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Point data transmission.

Specifications:
• Frequency: 5.0 ~ 6.0GHz
• Impedance: 50?
• Gain: 30dBi (Exclude Cable Loss)
• VSWR(MAX.): 1.8
• HPOL Beamwidth: 6° (3dB)
• VPOL Beamwidth: 6° (3dB)
• Elevation Beamwidth: 6° (3dB)
• Polarization: Horizontal & Vertical
• Mounting: Pole Mount
• F/B Ratio: 34dB Min
• Survival Wind Speed: 241 Km/h
• Standards: RoHS, WEEE
• Interfaces: RP-SMA
• Dimension: 650×650×360 mm
