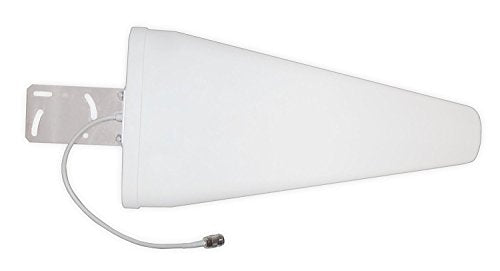

zBoost CANT-0042 Superlog Wide-band Directional Outside Antenna 10 dBi/12 dBi

For maximum performance be sure to aim the antenna in the direction of your wireless provider's tower. If you know the direction of your provider’s tower, simply point the antenna in that direction. If you are unsure of the location of the nearest tower, see antenna aiming instructions below. Note: the closest tower to your location may not be for your specific provider.

Specifications:
• Frequency range: 698-960 MHz/1710-2700 MHz
• Beam Width: 60º/55º
• Polarization: Vertical
• Max Gain: 10dBi/12dBi
• VSWR: ?1.6
• Impedance: 75?
• Max Power: 100W
• Lighting protection: DC Ground
• Connector: F-female
• Temperature: -40ºC ~55ºC
• Front-To-Back Ratio: ? 10dB

Installation Steps:
1. Once you have determined the location of strongest signal, install a mast or pole (not provided) on which to mount the antenna.
2. Assemble the provided L-bracket with the antenna using the provided screws. Then loosely connect the L-bracket to a mast to allow rotation around the mast (Important: The 2 holes on the side of the antenna plastic must be facing down). Before securing antenna hardware, take care in finding the optimum angle at which to aim the antenna – See Antenna Aiming Section for further instruction.
3. Connect the RG-6 coax cable to the antenna.
4. Route the cable indoors and connect it to the base unit using the Cell Phone Signal Booster installation instructions.
