zBoost ZB560P Reach Dual Band Cell Phone Signal Booster Covers up to 3,500 sq. ft.

The zBoost REACH provides increased in-building voice and data coverage and better reach into rural environments by using a directional External Antenna which is aimed at the nearest network tower. The ZB560P boosts cell phone signals for voice calls and text for all major carriers. The zBoost REACH captures the marginal to reliable cellular signal you have outdoors and rebroadcasts it indoors, up to 3,500 square feet, so you can enjoy clearer, faster service without interruption.

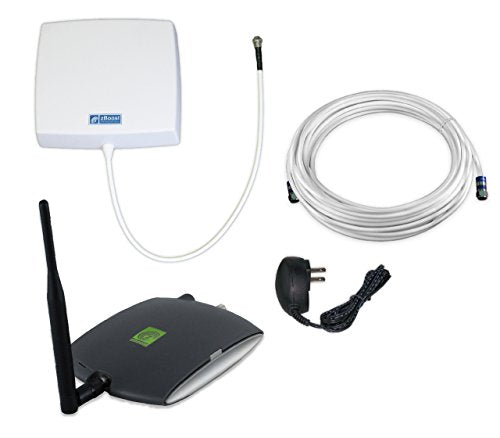

The ZB560P is backed by a 2 year Manufacturer’s Warranty Replacement and ships complete: amplifier base unit, indoor antenna, power supply, 50 ft. of RG6 cable, external panel antenna, and mounting hardware.

Specifications:

PCS
• Frequency: 1850 to 1990 MHz
• System Gain: 73 dB
• PCS band supported: A, D, B, E, F, C
• Networks: CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

Cellular
• Frequency: 824 to 894 MHz
• System Gain: 66 dB
• Cellular band supported: A, B, A’, B’
• Networks: CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

General
• Power Consumption – Power Supply Current: 3W standby; 7W max signal - 2.0A Max
• Wall Supply Input; Voltage: 100-240VAC 50-60 Hz; 5.0VDC
• System Certifications: FCC Parts 15 & 20, Industry Canada
• Base Unit Size and Weight: 5” x 7” x 1.25” – 9 oz.
• Coverage (open areas): Up to 3,500 sq. ft.
