zBoost ZB560SL Xtreme Reach Dual-Band Cell Phone Signal Booster Covers up to 7,500 sq. ft.

The zBoost Xtreme REACH provides increased in-building voice and data coverage and superior reach into rural environments using a high-gain directional external antenna which is aimed at the nearest network tower. zBoost Xtreme REACH boosts cell phone signals for voice calls and text for all major carriers. zBoost Xtreme REACH captures the good cellular signal you have outdoors and rebroadcasts it indoors, up to 7,500 square feet, so you can enjoy clearer, faster service without interruption.

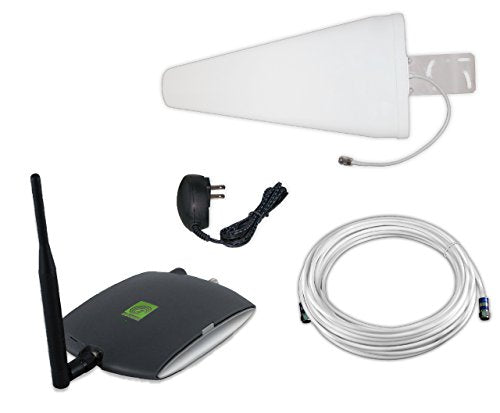

The ZB560SL is backed by a 2 year Manufacturer’s Warranty Replacement and ships complete: amplifier base unit, indoor antenna, power supply, 50 ft. of RG6 cable, external directional antenna, and mounting hardware.

Specifications:

PCS
• Frequency: 1850 to 1990 MHz
• System Gain: 77 dB
• PCS band supported: A, D, B, E, F, C
• Networks: CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

Cellular
• Frequency: 824 to 894 MHz
• System Gain: 70 dB
• Cellular band supported: A, B, A’, B’
• Networks: CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

General
• Power Consumption – Power Supply Current: 3W standby; 7W max signal - 2.0A Max
• Wall Supply Input; Voltage: 100-240VAC 50-60 Hz; 5.0VDC
• System Certifications: FCC Parts 15 & 20, Industry Canada
• Base Unit Size and Weight: 5” x 7” x 1.25” – 9 oz.
• Coverage (open areas): Up to 7,500 sq. ft.
