zBoost ZB560Y Cellular Reach Single-Band 800 MHz Booster Covers Up to 7,500 sq. ft.

zBoost Cellular REACH cell phone signal booster solves your missed and dropped calls inside your larger residential space. The zBoost Cellular REACH boosts cell phone signals for voice calls and text for all major carriers. zBoost Cellular REACH captures the marginal to reliable cellular signal you have outdoors and rebroadcasts it indoors, up to 7,500 square feet, so you can enjoy clearer, faster service without interruption.

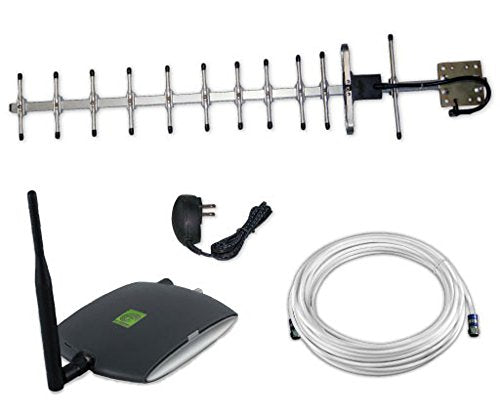

The ZB560Y is backed by a 2 year Manufacturer’s Warranty Replacement and ships complete: amplifier base unit, indoor antenna, power supply, 50 ft. of RG6 cable, external directional antenna, and mounting hardware.

Specifications:

Cellular band
• Frequency 824 to 894 MHz
• System Gain 71 dB
• Cellular band supported A, B, A’, B’
• Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

General
• Power Consumption – Power Supply Current 3W standby; 7W max signal - 2.0A Max
• Wall Supply Input; Voltage 100-240VAC 50-60 Hz; 5.0VDC
• System Certifications FCC Parts 15 & 20, Industry Canada (IC)
• Base Unit Size and Weight 5” x 7” x 1.25” – 9 oz.
• Coverage (depends on outside signal quality) Up to 7,500 sq. ft.
