zBoost ZB585SL Trio Xtreme Reach - Voice and 4G LTE Data Signal Booster for Canadian Home or Building

The zBoost TRIO Xtreme REACH solves missed and dropped calls, as well as, slow data inside your home. The zBoost TRIO Xtreme REACH ZB585SL-CP boosts signals for voice and 3G for all major carriers as well as 4G LTE on the 704-746 MHz frequency.

The zBoost ZB585SL-CP captures the marginal-to-reliable cellular signal you have outdoors and rebroadcasts it indoors, up to a whole house or building, so you can enjoy clearer, faster and more reliable service without interruption.

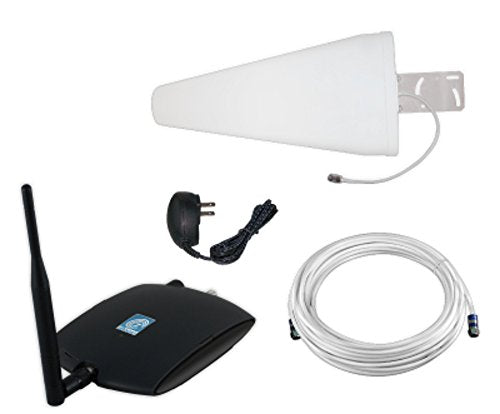

Everything you need is included: amplifier base unit, indoor whip antenna, power supply, 50 feet of RG-6 cable, high-gain external antenna, and mounting hardware.

Technical Specifications

PCS
• Frequency 1850 to 1990 MHz
• Band Supported 2
• System Gain 78 dB
• Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, 3G/4G (HSPA+)

Cellular
• Frequency 824 to 894 MHz
• Band Supported 5
• System Gain 69 dB
• Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, 3G/4G (HSPA+)

LTE
• Frequency 704 to 746 MHz
• Band Supported 17
• System Gain 68 dB
• Networks LTE

General
• Power Consumption 3W standby; 7W max signal - 2.5A Max
• Wall Supply Input; Voltage 100-240VAC 50-60 Hz; 5.0VDC
• System Certifications FCC Parts 15 & 20, Industry Canada
• Base Unit Size and Weight 5” x 7” x 1.25” – 9 oz.
