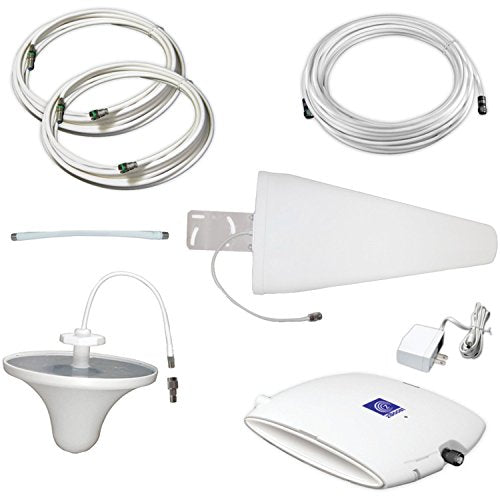

zBoost ZB645SL Dual Band Signal Booster With Directional Antennas Covers up to 10,000 sq. ft.

The zBoost ZB645SL cell phone signal amplifier kit extends a Cell Zone inside your larger indoor spaces. The ZB645SL captures the marginal-to-reliable cellular signal you have outdoors and rebroadcasts it indoors, up to 10,000 square feet. The ZB645SL boosts signal for voice and text for all major carriers.

Technical Specifications:

PCS
• Frequency 1850 to 1990 MHz
• System Gain 84 dB
• PCS band supported A, D, B, E, F, C
• Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

Cellular band
• Frequency 824 to 894 MHz
• System Gain 75 dB
• Cellular band supported A, B, A’, B’
• Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

General
• Power Consumption – Power Supply Current 3W standby; 7W max signal - 2.0A Max
• Wall Supply Input; Voltage 100-240VAC 50-60 Hz; 5.0VDC
• System Certifications FCC Parts 15 & 20, Industry Canada (IC)
• Base Unit Size and Weight 5” x 7” x 1.25” – 9 oz.
• Coverage (depends on outside signal quality) Up to 10,000 sq. ft.
