AI Satellite NPR-PEK Non-Penetrating Adjustable Peak Mount
AI Satellite NPR-PEK Non-Penetrating Adjustable Peak Mount
Couldn't load pickup availability
This new non-penetrating roof mount is a heavy gauge steel solution for angled roof peak installation. NPR-PEK is a universal roof mount and is an easy way to mount a dish on an angled roof peak. Using Ballast Blocks and iron angles dishes are safely mounted without penetrating the roof surface. The DTK or Double Tray Kit addition allows for installation of the Starband and Hughes Net dishes offering extra support with a second layer of ballast blocks. ItÂs ideal for steal or metal roof surfaces where no holes may be drilled.
Specifications:
 For use with all DirecTV, all Dish Network, Starband, Wild Blue and Free To Air.
 2 36 x 36 Rubber Mats Not Included
 4 Angle Irons
 4 Support Angle Irons with tabs
 1-36 center beam
 8 Ballast Blocks Not Included
 Bolt Bag with necessary hardware
 Heavy gauge steel
 Powder coated
 Double Tray Kit (not included): 4 angles and hardware
 Weight: PEK 40 lbs, DTK 10 lbs
Applications and Installation:

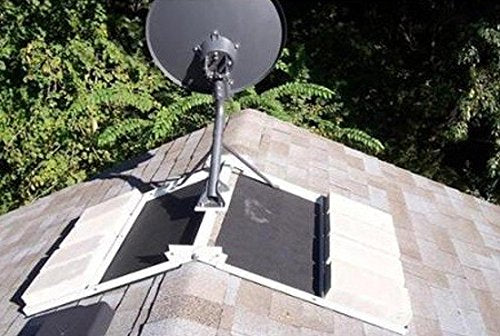

The NPR-PEK non-penetrating roof mount and DTK double tray kit are useful when installing all DirecTV, all Dish Network, Wild Blue, Starband, and Free to Air dishes on roof peaks. By straddling the roof peak with two ballast block holding trays assembled with angle irons, the dish has a securely anchored mount. Istallation Lay out angle irons with mounting tabs for the center beam. Bolt plain angles to tabbed angles. Attach all four angles with correct spacing for ballast blocks. Level mount plate and tighten all bolts. Install 2 36Â rubber mats (not included), and bolt on the J-pipe mast. Tighten all hardware and attach antenna. Use the Double Tray Kit for Hughes net which requires 16 blocks and can be ordered separately (DTK).
