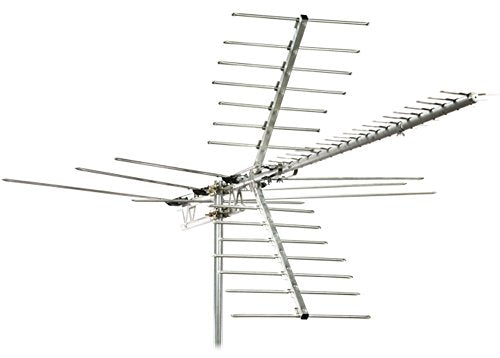

Channel Master CM-2020 Digital Advantage 100 Mile VHF, HIGH UHF,HDTV Outdoor Antenna, Receives Channels 7-69

The Digital Advantage 100 is a directional (yagi), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 100 miles.

Technical Specifications

Electrical Specifications
• Bandwith: 174 to 216 and 470 to 700 MHz
• VHF Gain: 7.5dB
• UHF Gain: 10dB
• Front to Back Ratio: 14dB
• Return Loss: N/A
• Impedance: 300 Ohm (75 Ohm balun included)

Mechanical Specifications
• Boom Length: 90.5"
• Number of Elements: 41
• Max Element Width: 61"
• Mounting Clamp: U bolt up to 2"
• Turning Radius: 6 ft.
• Output Connector: F-type
• Size (product): 90.675 x 60 x 22 in
• Weight (product): 4.5 lb
• Wind Resistance: (at 100 mph, no ice) – 38 lb

What’s Included
• Digital Advantage 100
• Hardware (mast, amplifier and coax cable not included)
• Installation Guide
