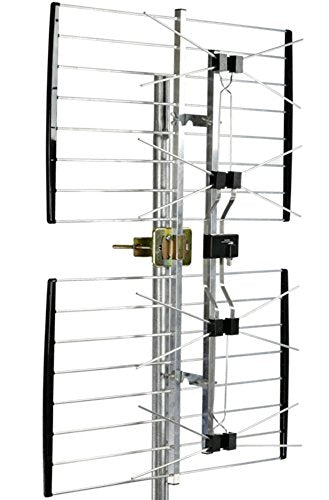

Channel Master CM4221HD ULTRAtenna 60-Mile Range 4-Bay Outdoor HDTV/UHF Antenna

The ULTRAtenna is a 4-bay, phased array, multi-directional outdoor antenna that receives high definition and digital signals from a span of 180 degrees. This antenna has a reception range of up to 60 miles.

Technical Specifications

Electrical Specifications
• Bandwith: 174 to 216 and 470 to 700 MHz
• VHF Gain: 3.5dB
• UHF Gain: 10dB
• Front to Back Ratio: 15dB
• Return Loss: N/A
• Impedance: 75 Ohm

Mechanical Specifications
• Boom Length: N/A
• Number of Elements: N/A
• Max Element Width: N/A
• Mounting Clamp: U bolt up to 2"
• Turning Radius: 1 ft.
• Output Connector: F-type
• Size (product): 4 x 20 x 36 in
• Weight (product): 5 lb
• Wind Resistance: (at 100 mph, no ice) – 40 lb

What’s Included
• ULTRAtenna (mast, amplifier and coax cable not included)
• Mounting Brace, U-Bolt with Bracket
• Installation Guide
