Xantech EN85K Ensemble Universal IR Receiver and IR Repeater Kit with Multi Housing
Xantech EN85K Ensemble Universal IR Receiver and IR Repeater Kit with Multi Housing
The EN85K Ensemble is a convertible IR Receiver Kit that can be adapted to almost any surface mount, flush mount or shelf mount application. It includes all of the parts necessary for installing a single-room IR Repeater System for controlling a TV, Audio/Video Receiver, Blu-ray player, Cable Box, Satellite Receiver...just about any IR controlled A/V home entertainment device.
The kit includes an IR Receiver that can be attached to the front of a TV, or extended from behind with the TV Mount Adapter on flat panel TVs that have a minimal frame around the display area. The receiver can also be adapted to low-profile shelf-top placement with the Tabletop Adapter or inconspicuously mounted in a cabinet door with the Flush Mount Adapter for controlling IR components hidden in an equipment cabinet.

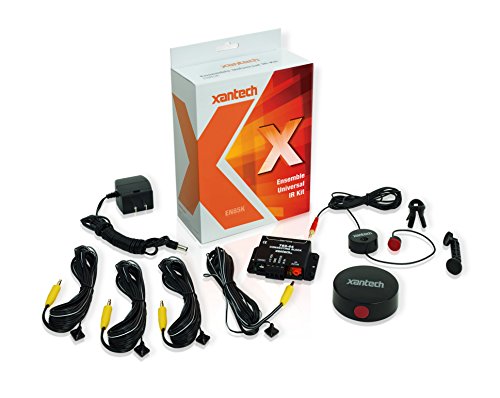

Kit includes:
 1 x EN85 IR receiver
 1 x Model 789-44 connecting block (Connects one IR receiver to 4 IR emitter ports with enough power to drive up to 4 dual emitters)
 1 x 12VDC regulated power supply
 4 x 283D Blink-IR Designer emitters
 1 x Instruction manual
Specifications:
 Infrared Carrier Frequency Bandwidth: 30-60KHz
 Reception Range: Up to 80 feet (depending on remote control output strength and ambient conditions)
 Reception Angle: +/- 45°
 Maximum Transmission Length: 1 mile using 18 gauge wire
 Maximum Current Output: 100mA
 IR Receiver Dimensions: 0.55" diameter (14mm)
 Power Requirements: +12VDC, 100mA
The kit includes an IR Receiver that can be attached to the front of a TV, or extended from behind with the TV Mount Adapter on flat panel TVs that have a minimal frame around the display area. The receiver can also be adapted to low-profile shelf-top placement with the Tabletop Adapter or inconspicuously mounted in a cabinet door with the Flush Mount Adapter for controlling IR components hidden in an equipment cabinet.
Kit includes:
 1 x EN85 IR receiver
 1 x Model 789-44 connecting block (Connects one IR receiver to 4 IR emitter ports with enough power to drive up to 4 dual emitters)
 1 x 12VDC regulated power supply
 4 x 283D Blink-IR Designer emitters
 1 x Instruction manual
Specifications:
 Infrared Carrier Frequency Bandwidth: 30-60KHz
 Reception Range: Up to 80 feet (depending on remote control output strength and ambient conditions)
 Reception Angle: +/- 45°
 Maximum Transmission Length: 1 mile using 18 gauge wire
 Maximum Current Output: 100mA
 IR Receiver Dimensions: 0.55" diameter (14mm)
 Power Requirements: +12VDC, 100mA
